LED Grid Display vMesh Series

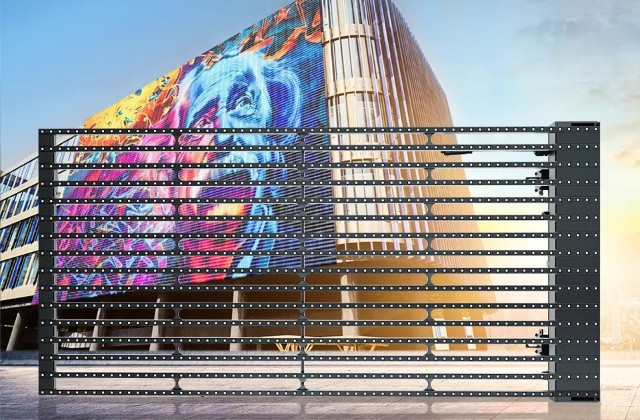

The grid screen series is specially designed for outdoor fixed installation, and is widely used in building exterior wall, road advertisement and so on. Compared with the traditional products, the grid screen series is thinner, higher brightness, and higher transparency, so that most of the outdoor adverse weather can be met. And the front and back maintenance is supported, and the structural cost and the labor cost are saved.

Features
1. SMD and DIP as optional.

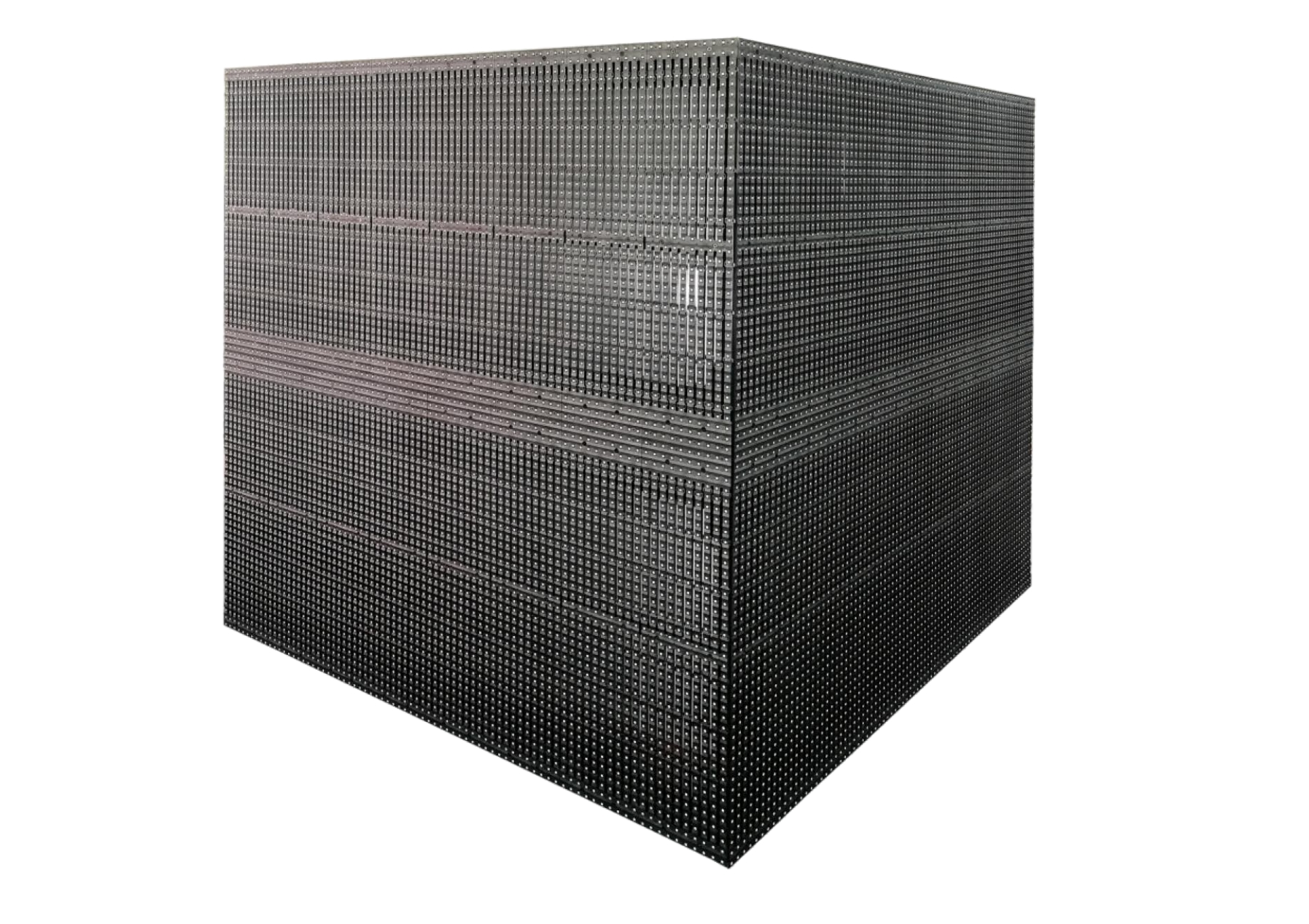

2. Right-angled Connection: The edges of each module are designed to be 45 degrees, it is easier to make right-angled connection.

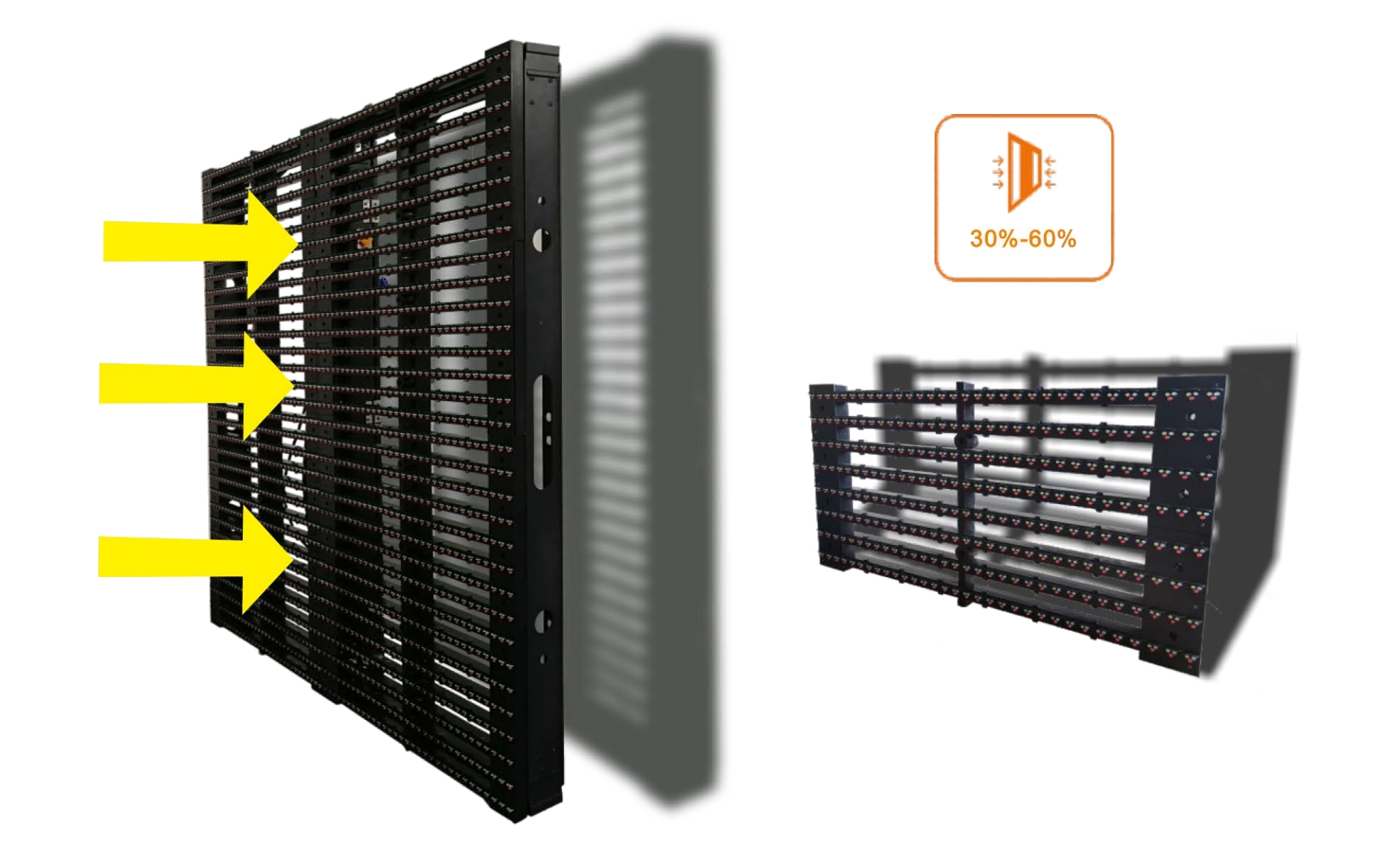

3. High transparency: 35-60%, which will not affect the lighting behind the LED Screen and reduce wind resistance.

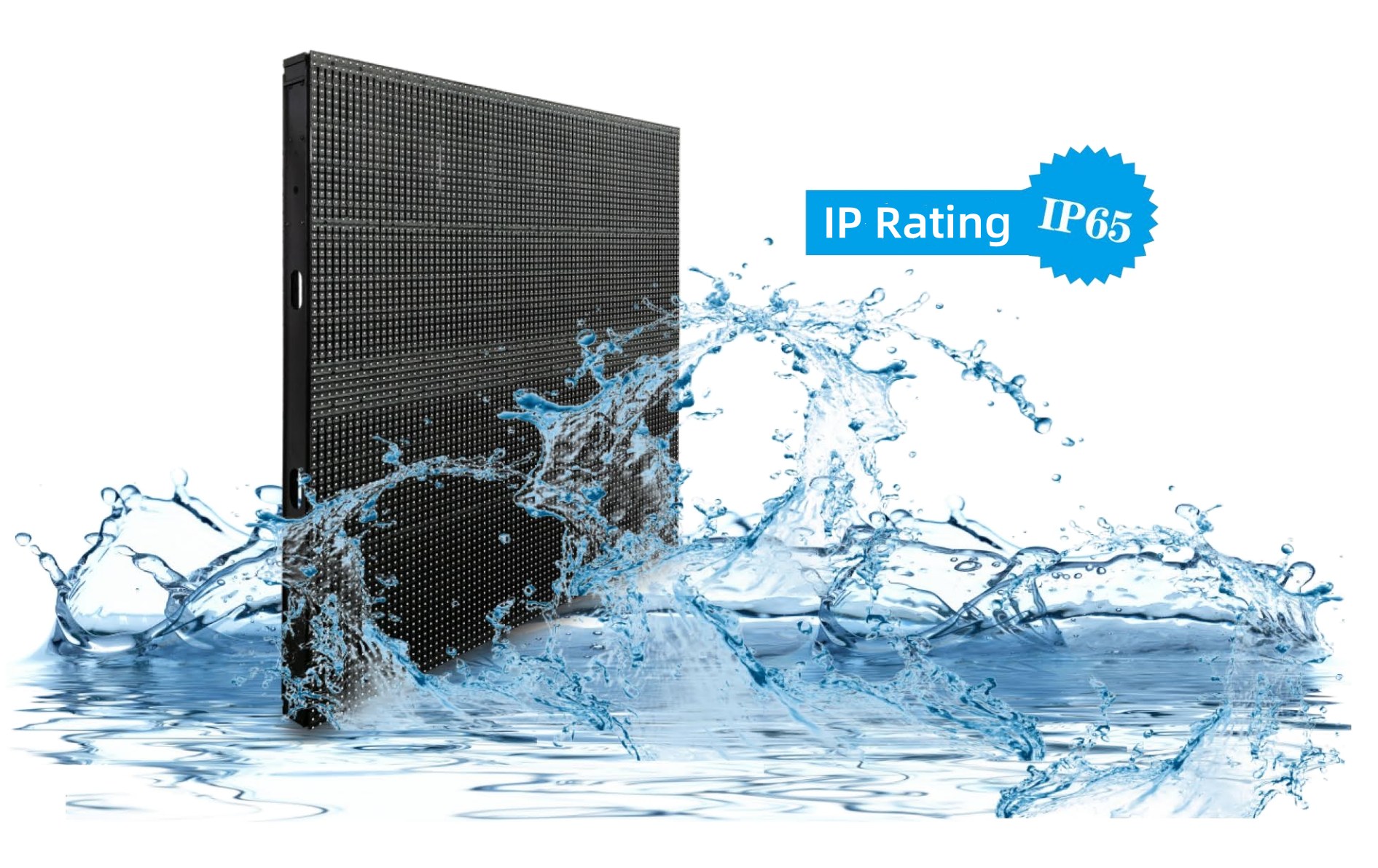

4. IP65 Waterproof and higher brightness, it can reach 10000nits.
5. Energy saving, power consumption only 100W/m2.
6. Thinner and lighter cabinets design, Easy installation and maintenance.

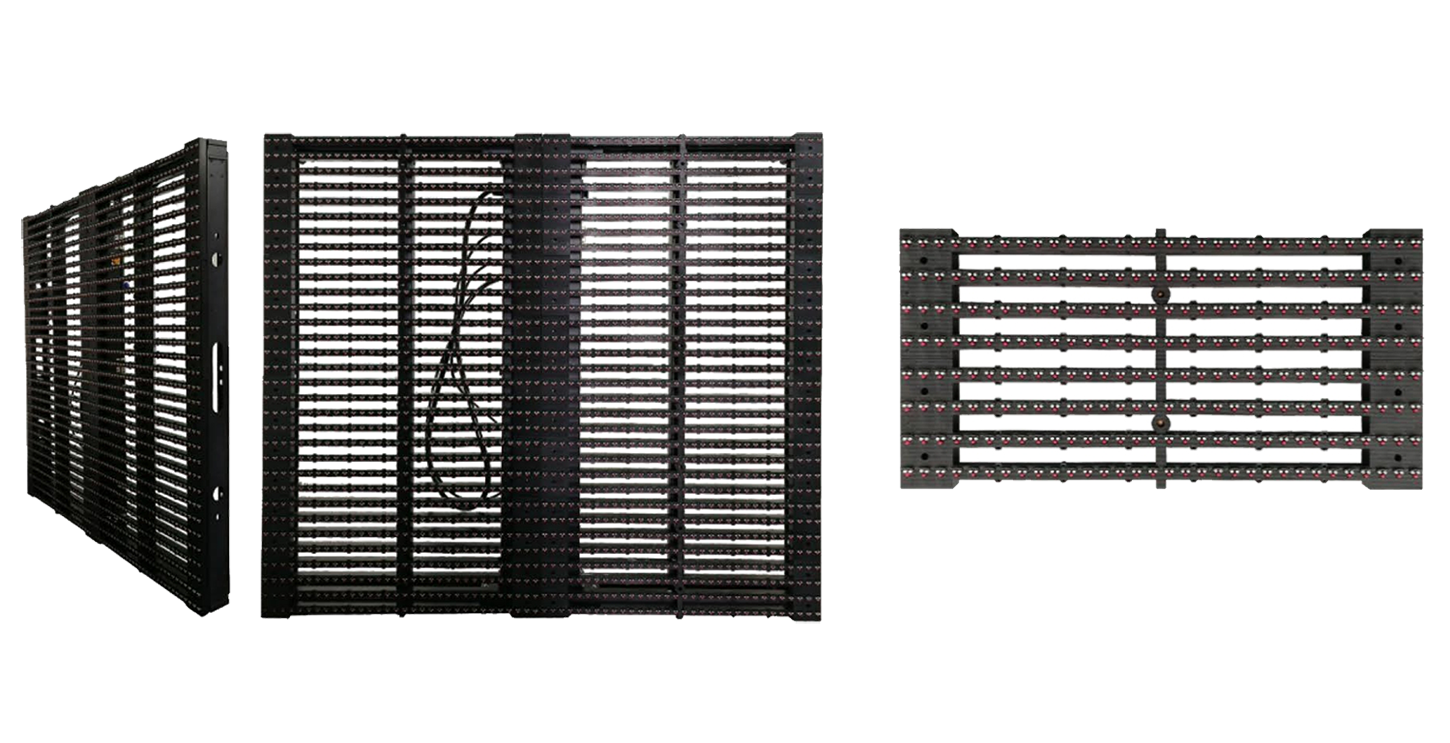

7. Front and rear service.

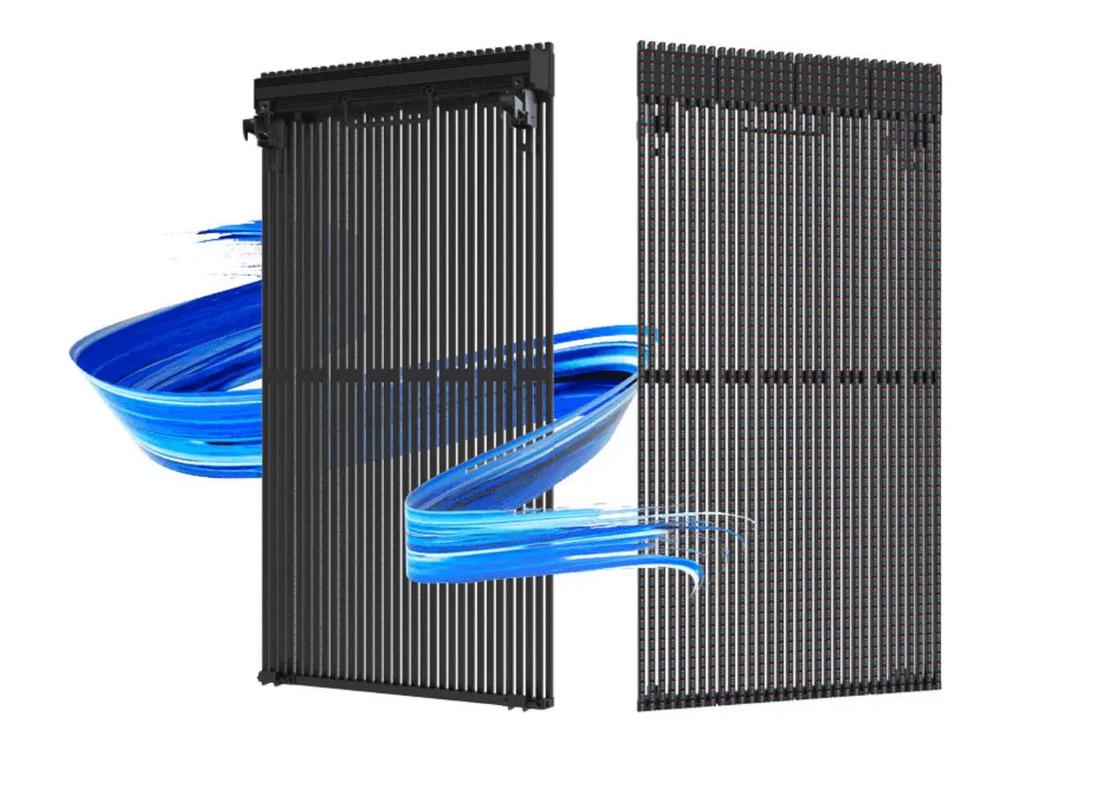

It is lighter and thinner than traditional displays. Reduce massive load-bearing for installation, saving cost on transportation and installation. Permeability and low wind resistance, good for cooling and day lighting. Ventilation ensures strong wind load capacity, fan-less. Modular design make it quick and easy maintenance.
vMesh Specification
Model No.vMesh1212vMesh1515vMesh1531vMesh3131
Pixel Pitch(mm)W12.5H12.5W15.625H15.625W15.625H31.25W31.25H31.25
Pixel ConfigurationSMD3535SMD or DIPSMD or DIPSMD or DIP
Pixel Density(pixels/m²)6,4004,0962,0481,024
Cabinet Size(mm)1000x5001000x5001000x5001000x500
Cabinet Resolution80x40dots64x32dots64x16dots16x16dots
Transparency35%50%60%70%
Cabinet Weight(kg/m2)18
Gray Scale14bit
Refresh Rate1920Hz-3840Hz
Max. Power Consumption800W/m²
Operating Temp/Humidity-40℃-60℃/10% - 90%
IP RatingIP65
Brightness6000nits-10000nits
Viewing Angle140°/140°
Operating Life100,000 hours
MaintenanceFront/Rear

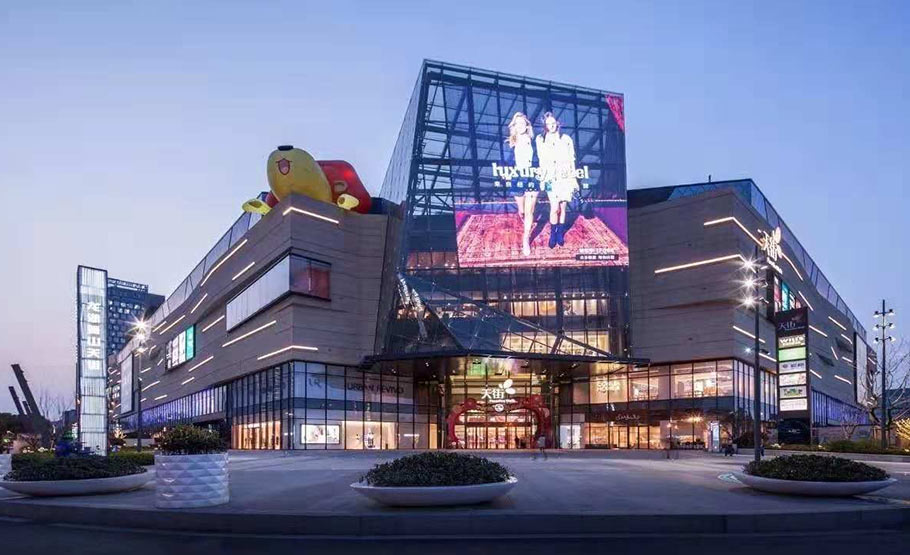

Application cases

Outdoor building exterior advertising and decoration, etc
