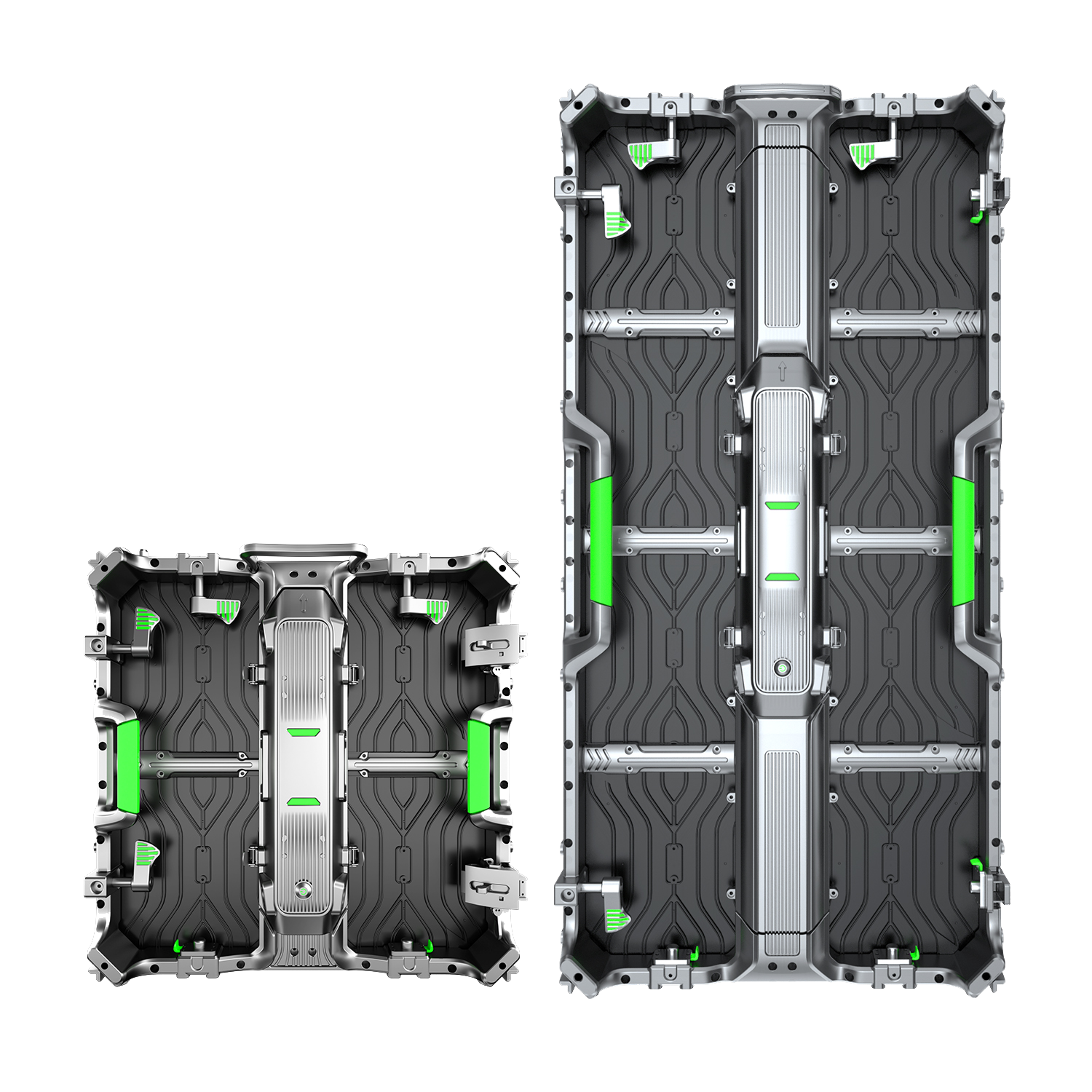

Rental LED display vHub series, mainly used in the various indoor and outdoor events, such as stage, auto show, fashion show, nightclub, etc. Its HUB version design makes fast front and rear maintenance. Large module (250x500mm) splicing, the cabinet of 500mm*1000mm and 500mm*500mm can splicing and up and down dislocaion.
vHub Series Feature Details

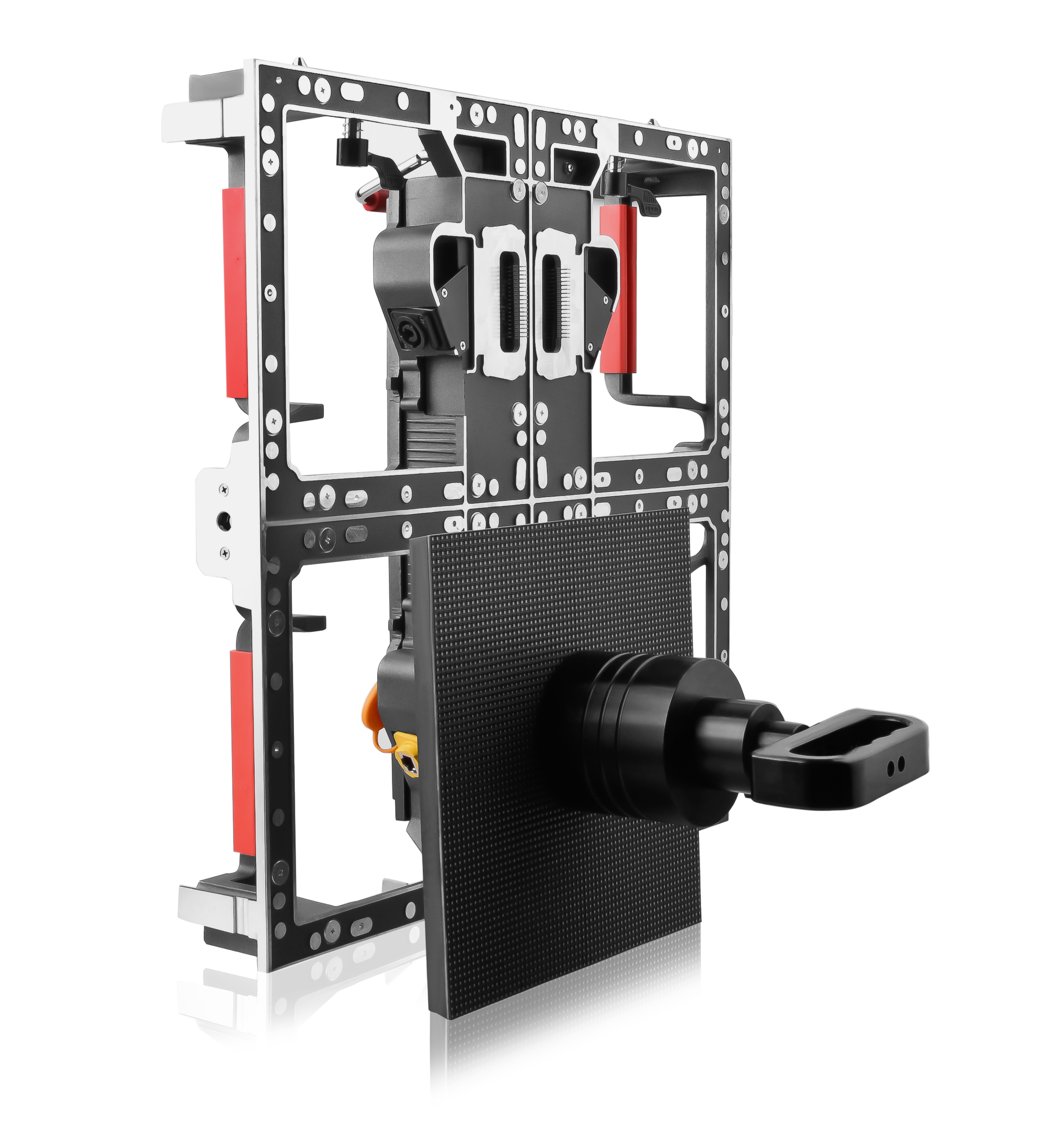

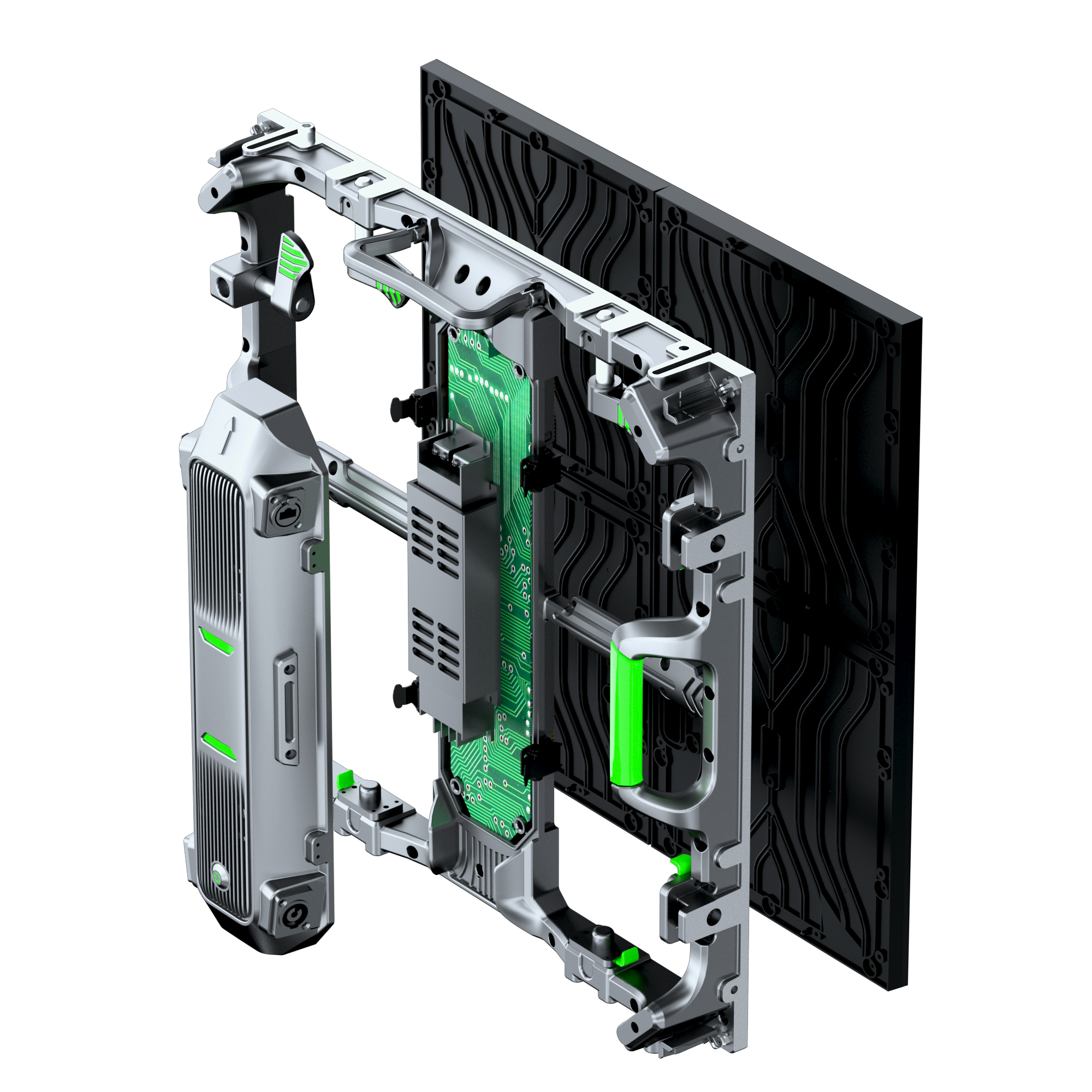

Die-cast aluminum frame design, the cabinet is light and thin, easy to carry and good for heat dissipationl. Fanless design, absolutely silent operation. High refresh, high contrast, high grayscale, beautiful picture quality. Wide viewing angle gives your screen the largest viewing area. Curved fast lock makes it convex and concave installation. Magnetic module makes it fast front maintenance.

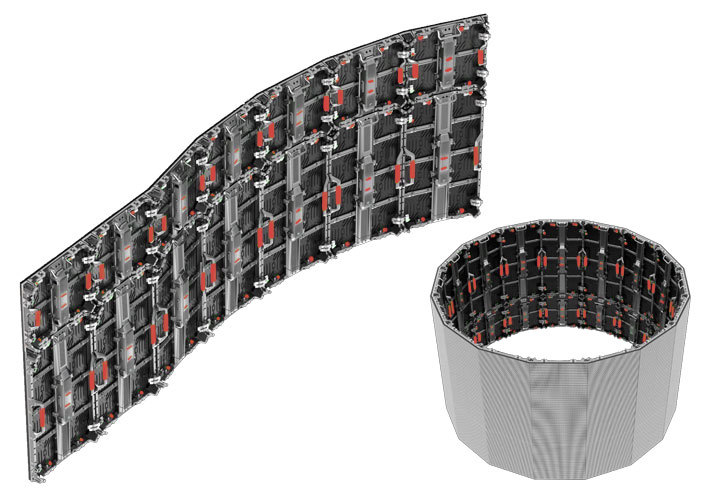

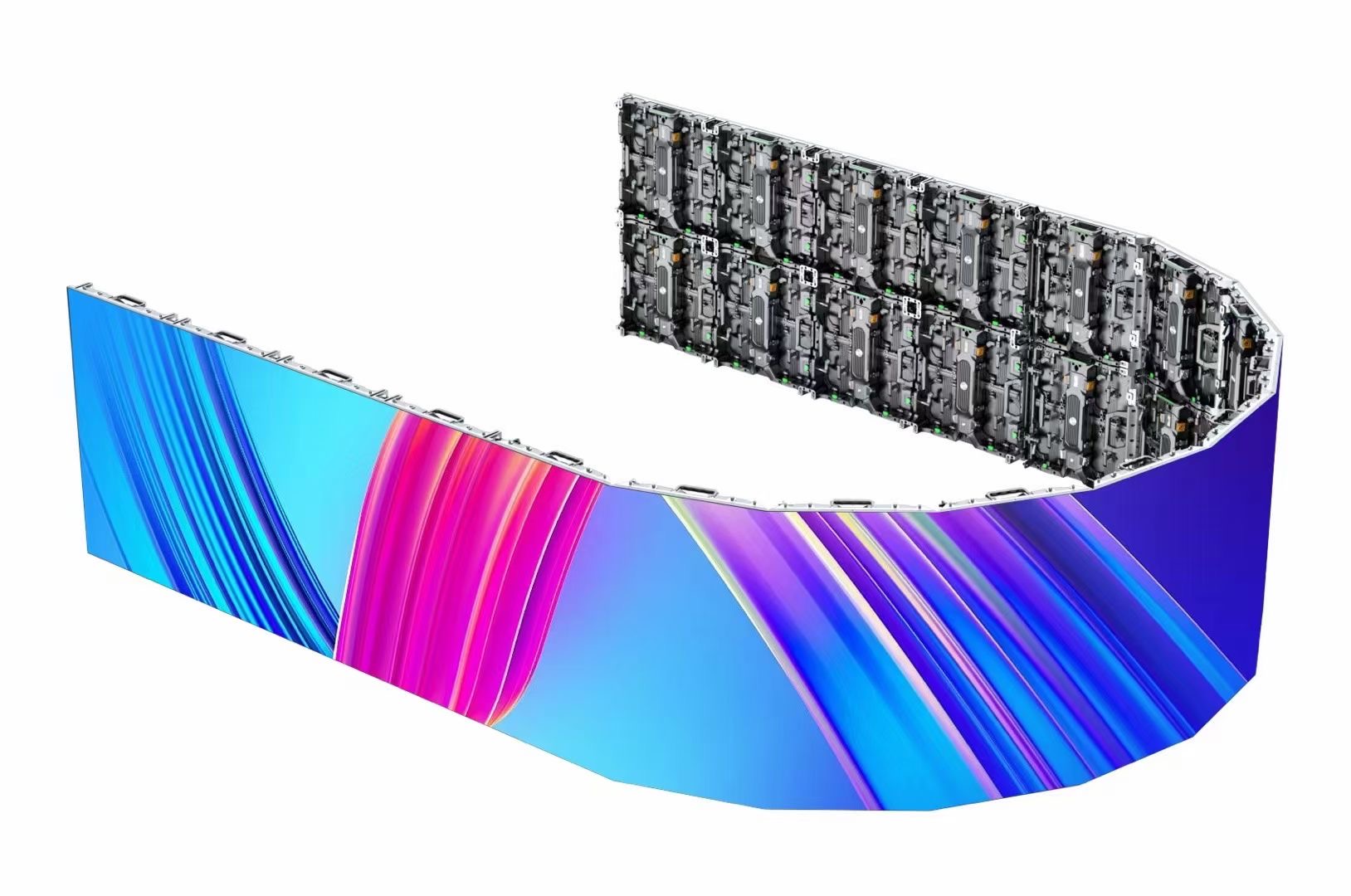

vHub Series supports flexible installation, such as cube, circle, convex and concave, and two size cabinets(500x500 & 500x1000) splicing up and down discolation.
| vHub Specification | ||||
|---|---|---|---|---|
| Model No. | vHub 2.6 | vHub 2.98 | vHub 3.91 | vHub 4.81 |
| Pixel Pitch | 2.604mm | 2.98 mm | 3.91 mm | 4.81 mm |
| Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density(pixels/m²) | 147,456 | 112,896 | 65,536 | 43,264 |
| Module Size(mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module Resolution | 96x96dot | 84x84dot | 64x64dot | 52x52dot |
| Cabinet Size(mm) | 500x500(1000)x85 | 500x500(1000)x85 | 500x500(1000)x85 | 500x500(1000)x85 |
| Cabinet Resolution | 192x192/192x384 | 168x168/168x336 | 128x128/128x256 | 104x104/104x208 |
| Module Qty per Cabinet(WxH) | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 | 2x2/2x4 |
| Cabinet Weight(kg) | 8.5/13.5 | 8.5/13.5 | 8.5/13.5 | 8.5/13.5 |
| Gray Scale | 14bit | 14 bit | 14 bit | 14 bit |
| Max. Power Consumption | 800W/m²; | |||
| Ave. Power Consumption | 260W/m²; | |||
| Operating Temp/Humidity | -20℃-50℃/10% - 90% | |||
| IP Rating | IP30(indoor)/IP65(outdoor) | |||
| Brightness | 600-800nits(indoor)/ 4000-5000nits(outdoor) | |||
| Viewing Angle | 140°/140° | |||
| Operating Life | 100,000 hours | |||
| Maintenance | Front Service/Rear Service | |||
Installation method
Hanging installation and stacking installation, stacking installation 12pcs maximum in height, Hanging installation 12pcs maximum
in height.
Application Cases

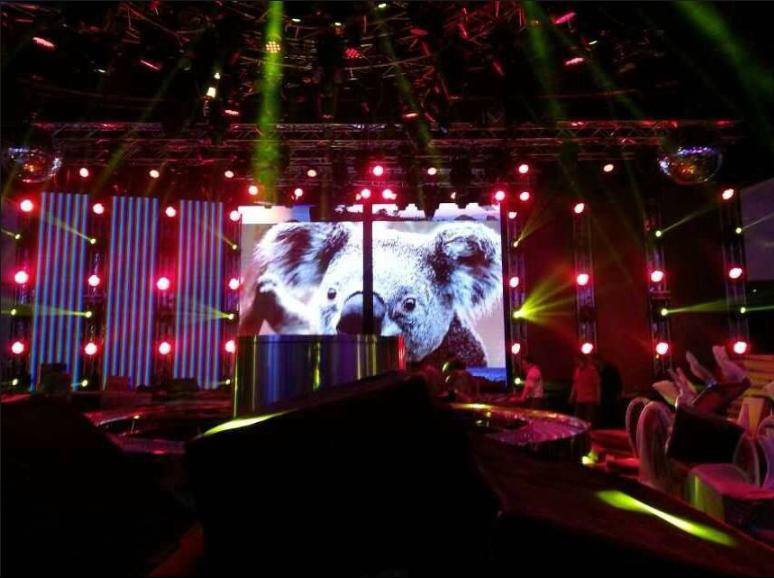

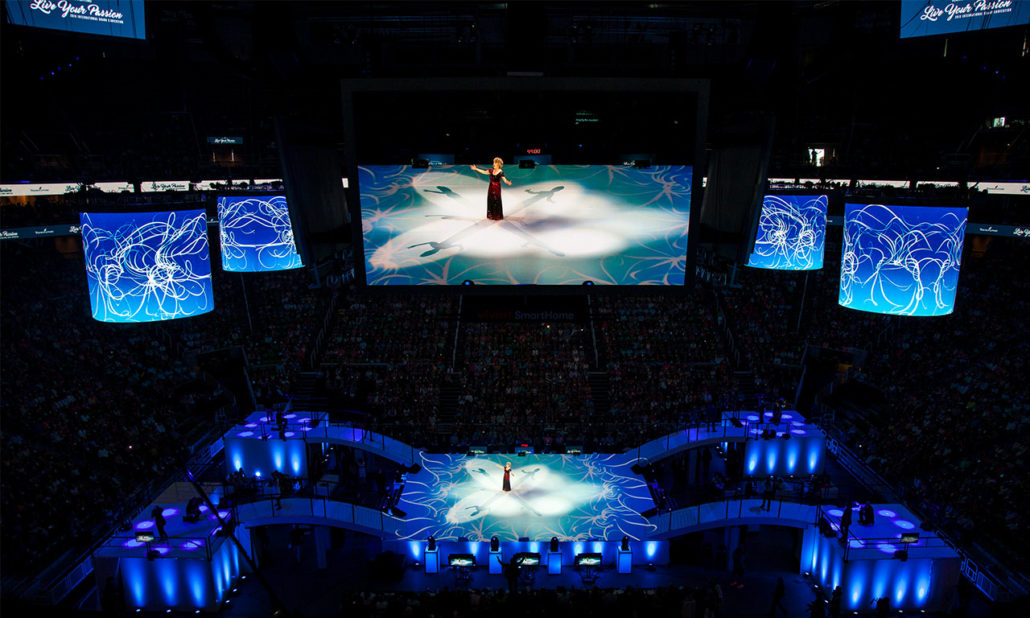

vHub Series LED display is widely used in stage background, theater, banquets, vestibules, exhibitions, transportation, shopping mall, command and control, etc.
