LED Video Floor vMagic-A Series

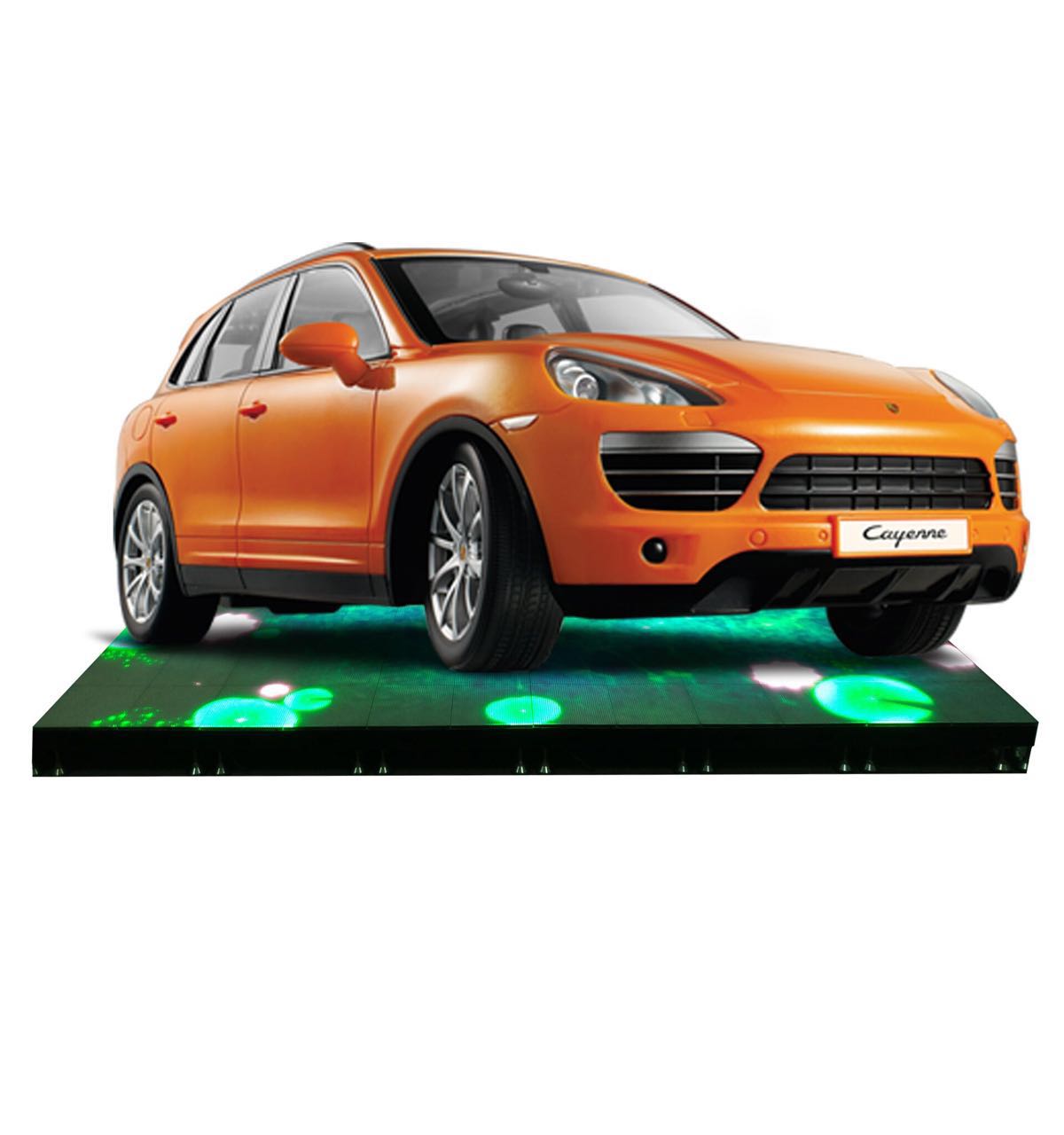

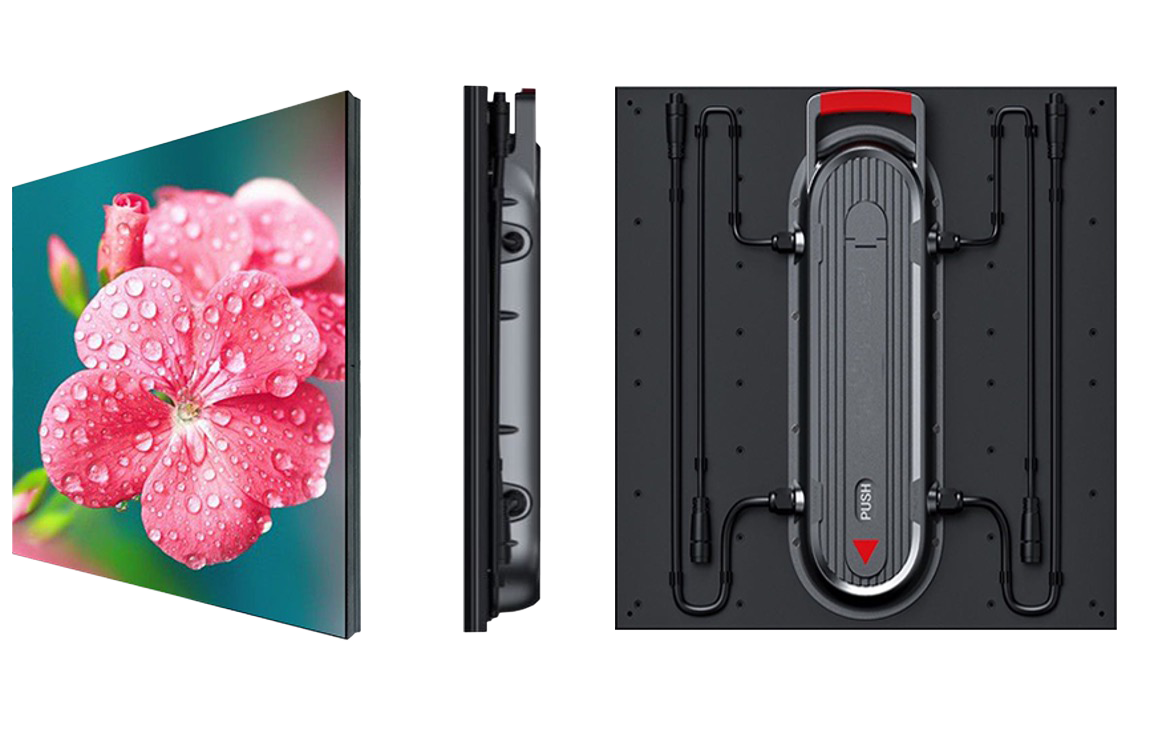

vMagic-A Series is a kind of LED video floor that built-in interactive sensor chip. 500x500mm aluminum cabinet, with the features of lightweight, interactive, easy installation, easy maintenance, highly load-bearable etc. It mainly used in stage, shoping mall, exhibition, fashion show, auto show, nightclub and other events.

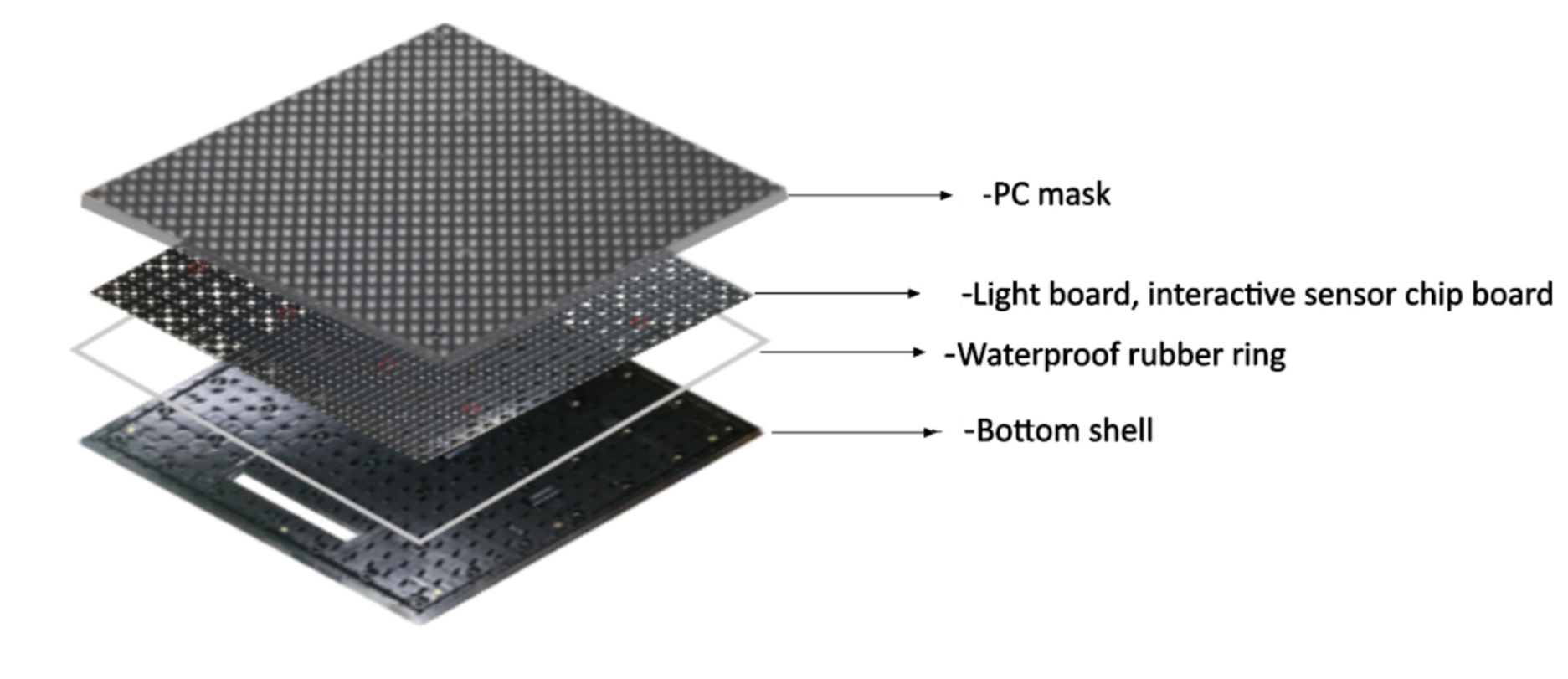

Module Features

1. The module adopts imported high-permeability alkaline PC material, numerical control CNC one-time molding, fire pattern road surface, and private mold patent design, which reach truly seamless splicing and high accuracy features.

2. The ink color on the front of the module is consistent, and there is no color difference when viewed from any angle.

3. Advanced glue filling technology with waterproof rubber ring makes module perform perfect waterproof and dustproof, which applied to indoor and outdoor.

4. Professional anti-sharp and anti-scratch mask design can guarantee the long-term use of the floor screen.

5. The module can still maintain the original color with Anti-uv characteristics after many years of sunlight.

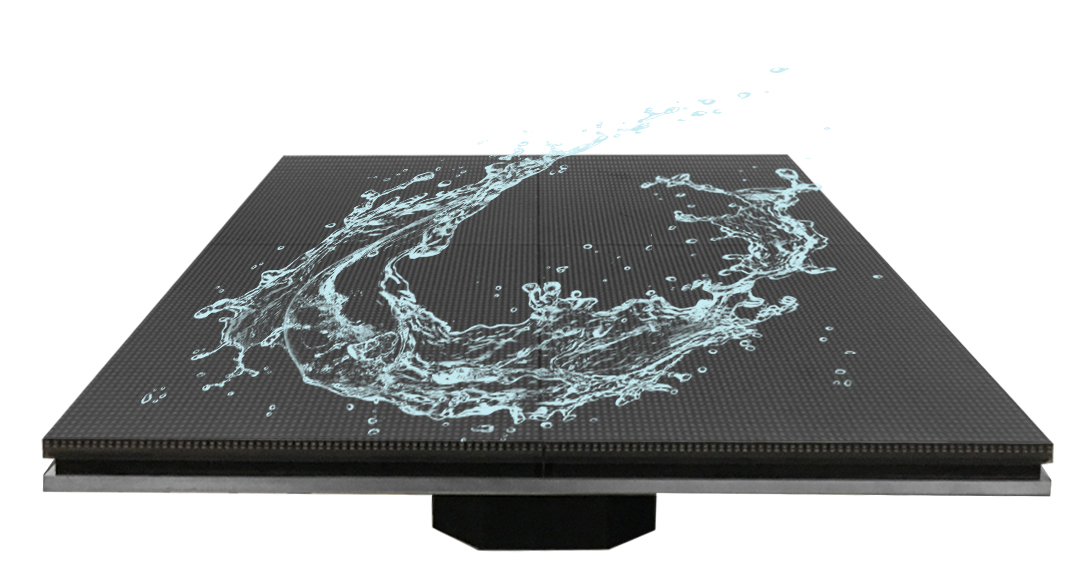

Loading weight test and waterproof test

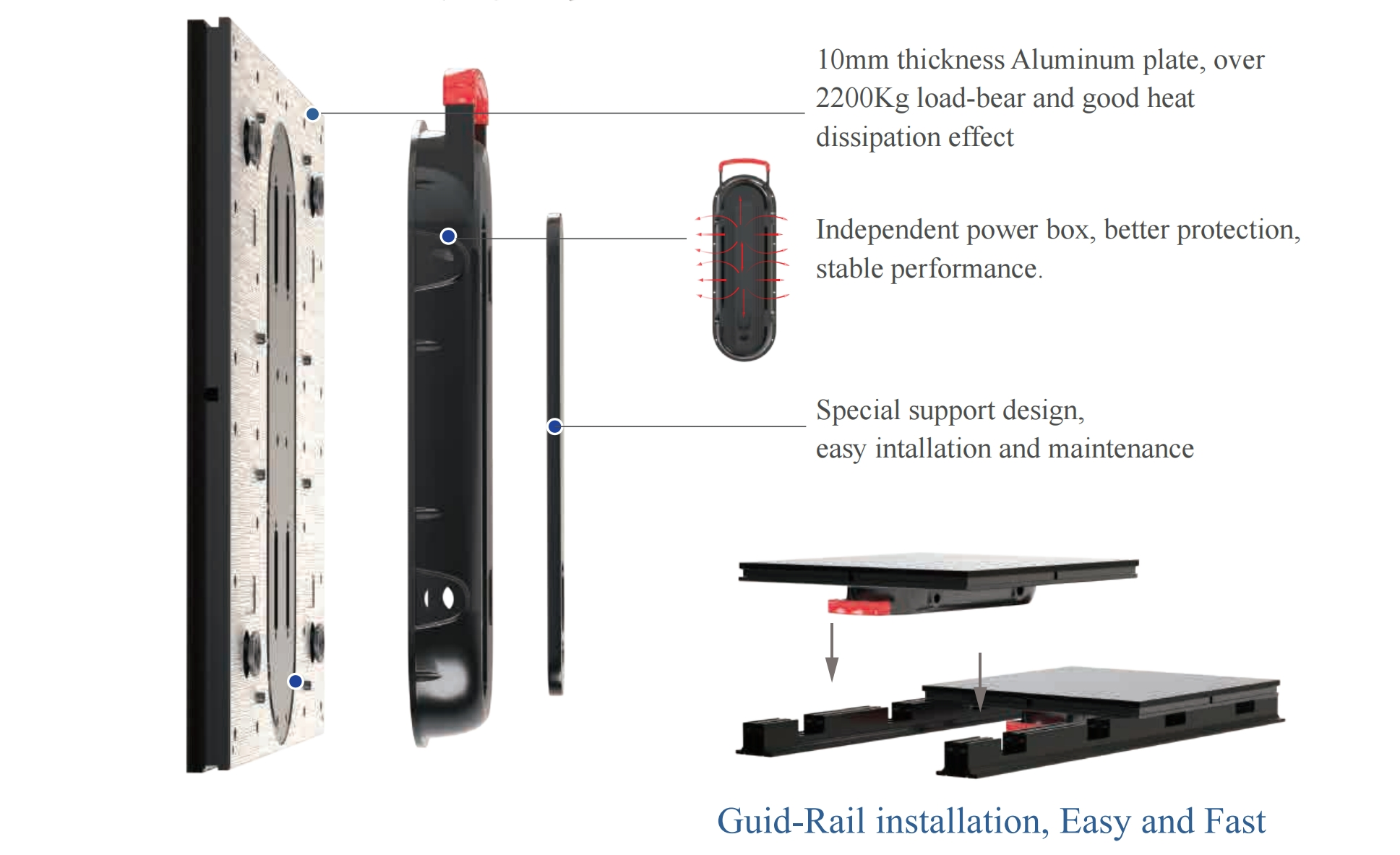

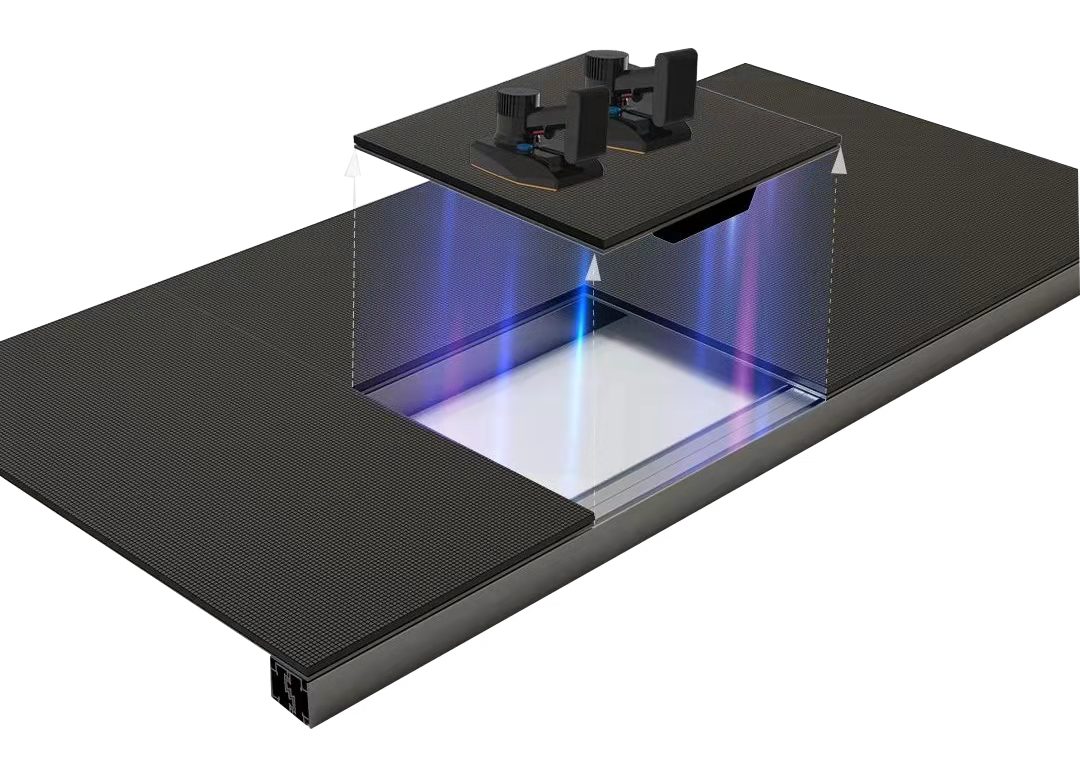

Easy maintenance, individually removable and replaceable.
vMagic-A Specification
Model No.vMagic-A 2.6vMagic-A 2.98vMagic-A 3.91vMagic-A 4.81vMagic-A 5.2
Pixel Pitch2.604 mm2.976 mm3.91 mm4.81 mm5.2 mm
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921SMD1921
Pixel Density(pixels/m²)147,456112,89665,53643,26436,864
Module Size(mm)250x250250x250250x250250x250250x250
Module Resolution(pixels)96x9684x8464x6452x5248x48
Cabinet Size(mm)500x500x80500x500x80500x500x80500x500x80500x500x80
Cabinet Resolution(pixels)192x192168x168128x128104x10496x96
Refresh Rate1920Hz-3840Hz
Cabinet Weight(kg/panel)13
Max. Load-bearing(kg/m²)2200KG
Max. Power Consumption800W/m²;
Ave. Power Consumption400W/m²;
Operating Temp/Humidity-20℃-50℃/10% - 90%
IP RatingIP65/IP45
Brightness900-3000nits
Viewing Angle160°/160°
Operating Life100,000 hours
MaintenanceFront/Rear Service

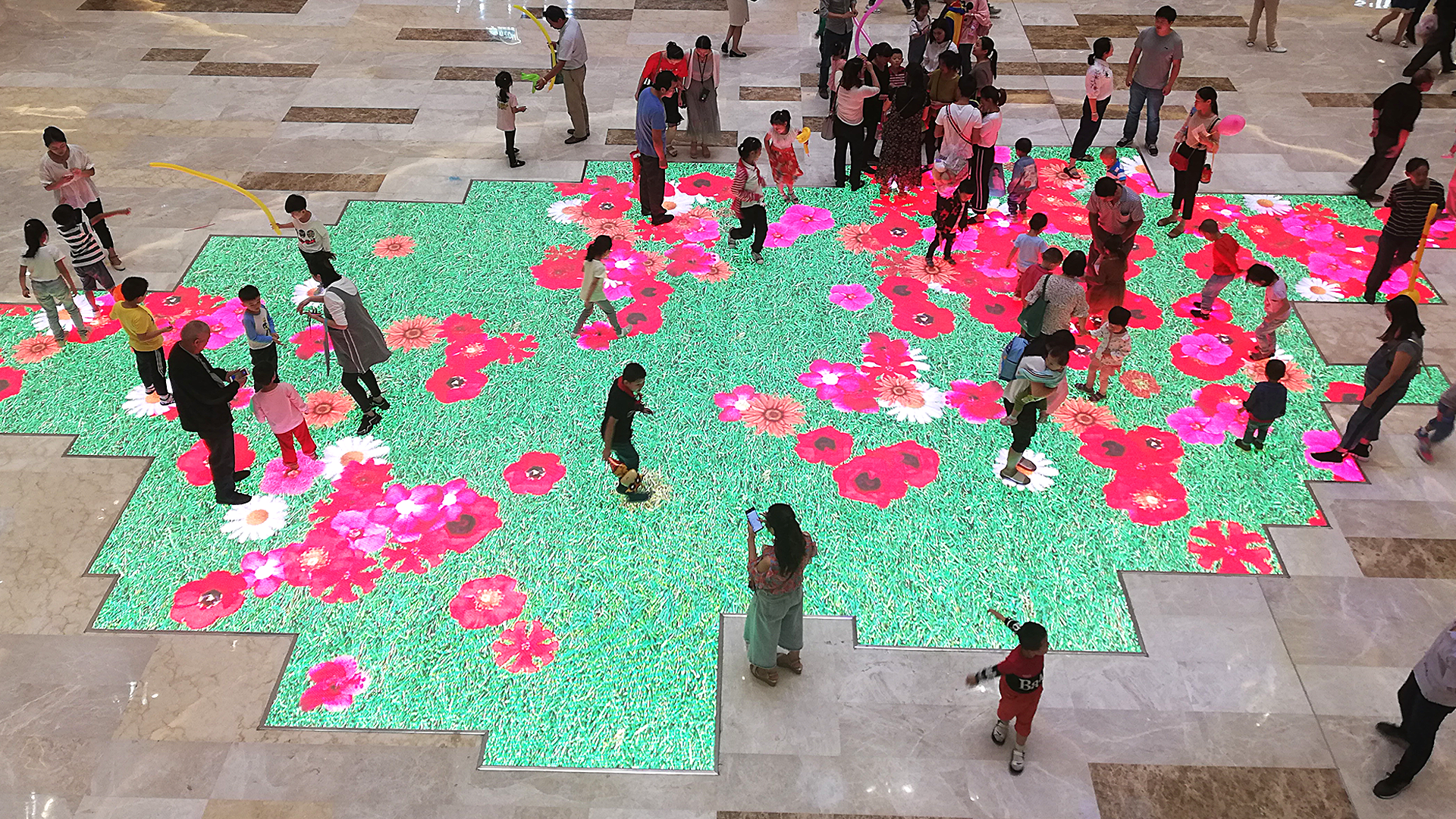

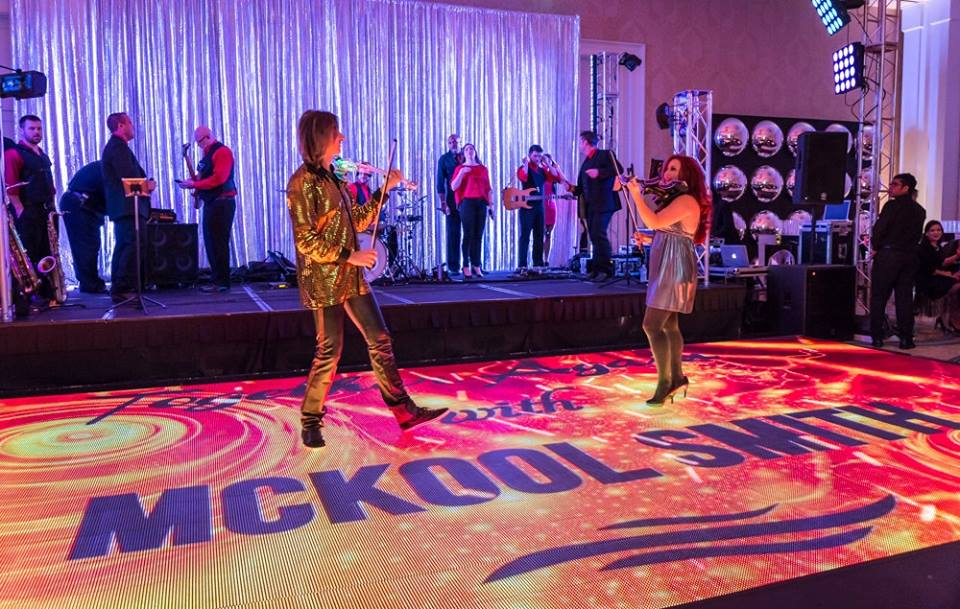

Application cases

Large auto shows, press conferences, concerts, stage rentals, entertainment centers, shopping malls, theatres, television stations, bars, disco, hotels, etc.
