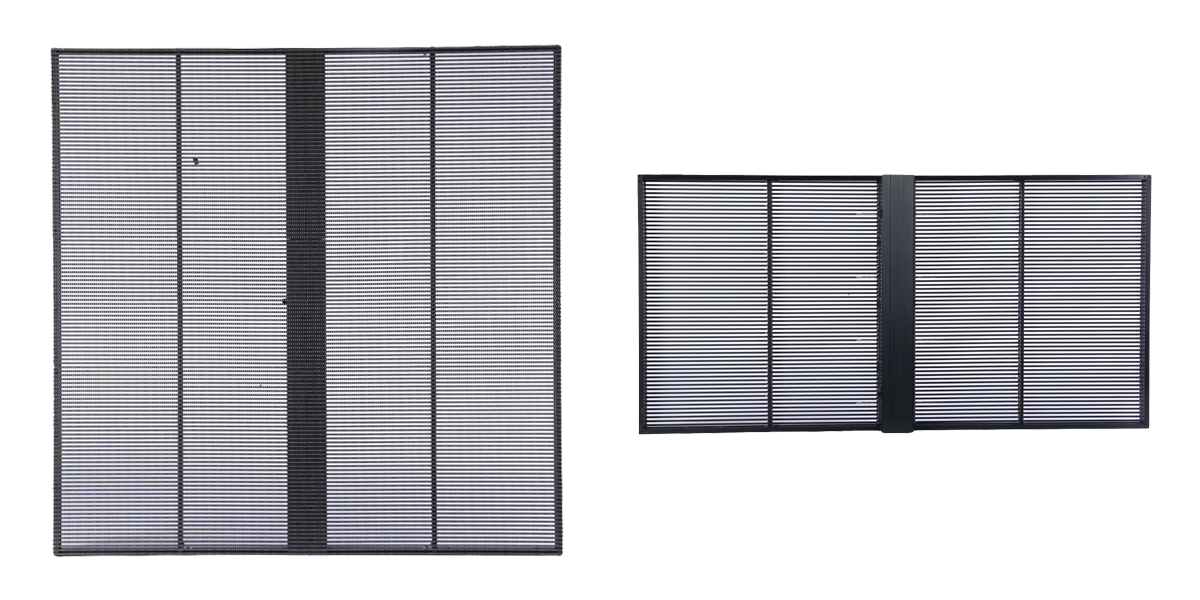

Fixed Transparent LED Display VT-F Series

VT-F fixed transparent screen is a highly portable and easy-to-assemble product that designed for indoor and outdoor fixed use, with the features of high transparency, simple structure, high refresh rate, outdoor waterproof, etc. VT-F series is widely used in various events, such as TV studio, shoping mall, building facade, elevator tour and other advertising events.

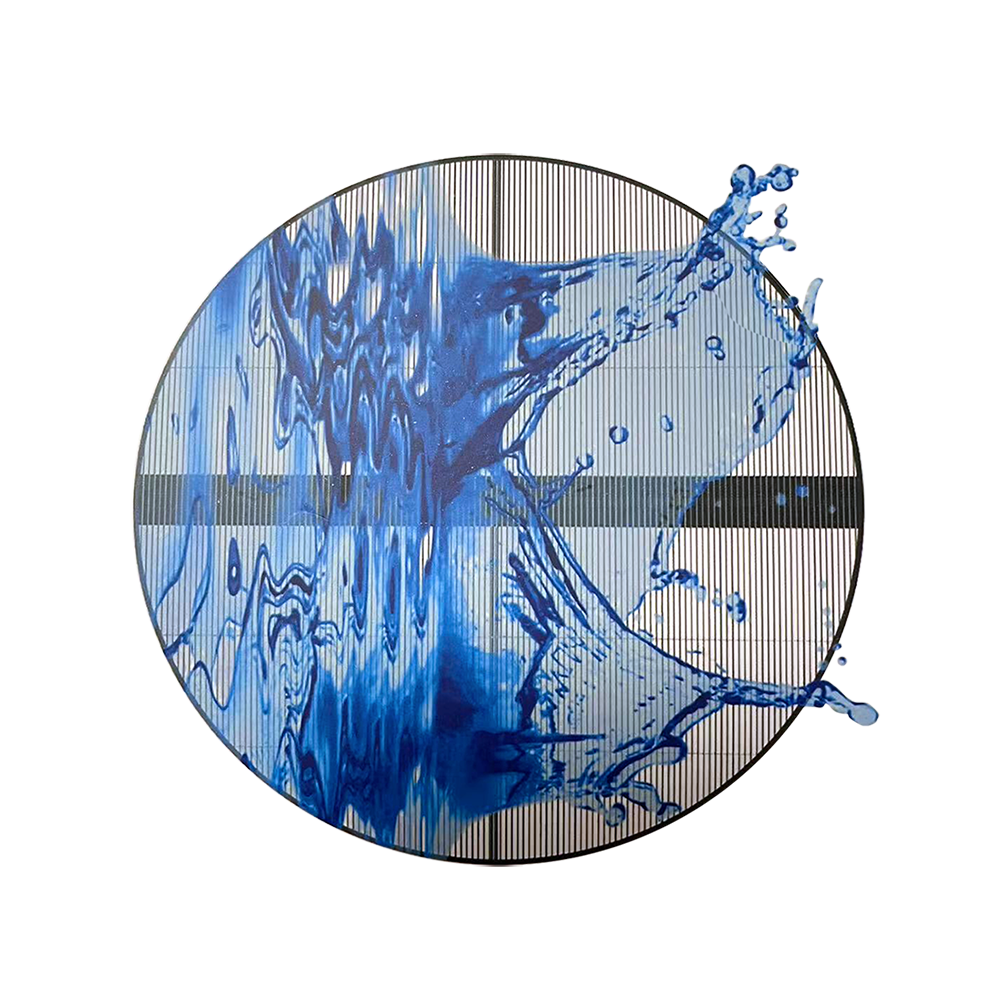

Its simple structure design allows it can be customize size and shape according to the irregular project shapes.


Features

1. Aluminum cabinet, slim, strong and seamless assembling.

2. High transparency, the highest can reach 80%.

3. Easy maintenance, fast replaced module, support front and rear service.

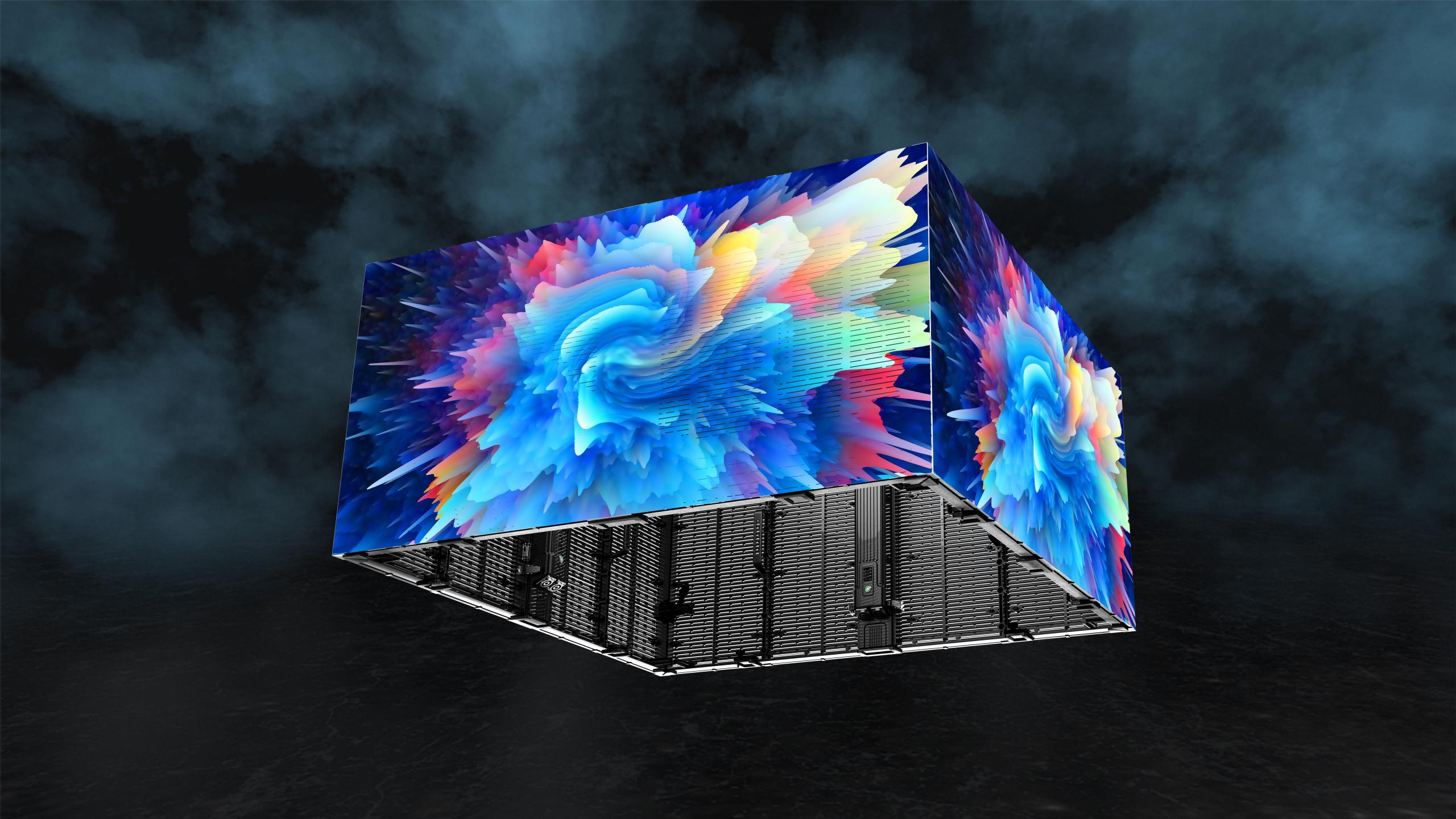

4. Stacking, hanging and fixed installation are supported.

5. The lamp and PCB are fully sealed by silicon, anti-dust and anti-collision, IP65 both front and rear.
VT-F Specification
Model No.VT-F 2.6VT-F 2.8VT-F 3.9VT-R 7.8
Pixel PitchW2.6 H5.2W2.8 H5.6W3.9 H7.8W7.8 H7.8
Pixel ConfigurationSMD1921SMD1921SMD1921SMD1921
Pixel Density(pixels/m²)73,72861,95232,76816,384
Module Size(mm)500x125500x125500x125500x125
Module Resolution192x24dots176x22dots128x16dots64x16dots
Cabinet Size(mm)1000x1000x751000x1000x751000x1000x751000x1000x75
Cabinet Resolution384x192dots352x176dots256x128dots128x128dots
Transparency65%70%75%75%
Cabinet Weight(kg/m2)10
Gray Scale14bit
Refresh Rate1920Hz-3840Hz
Max. Power Consumption800W/m²
Operating Temp/Humidity-10℃~50℃/15% - 90%
IP RatingIP30(indoor)/IP65(outdoor)
Brightness600nits-5000nits
Viewing Angle140°/140°
Operating Life100,000 hours
MaintenanceFront/Rear

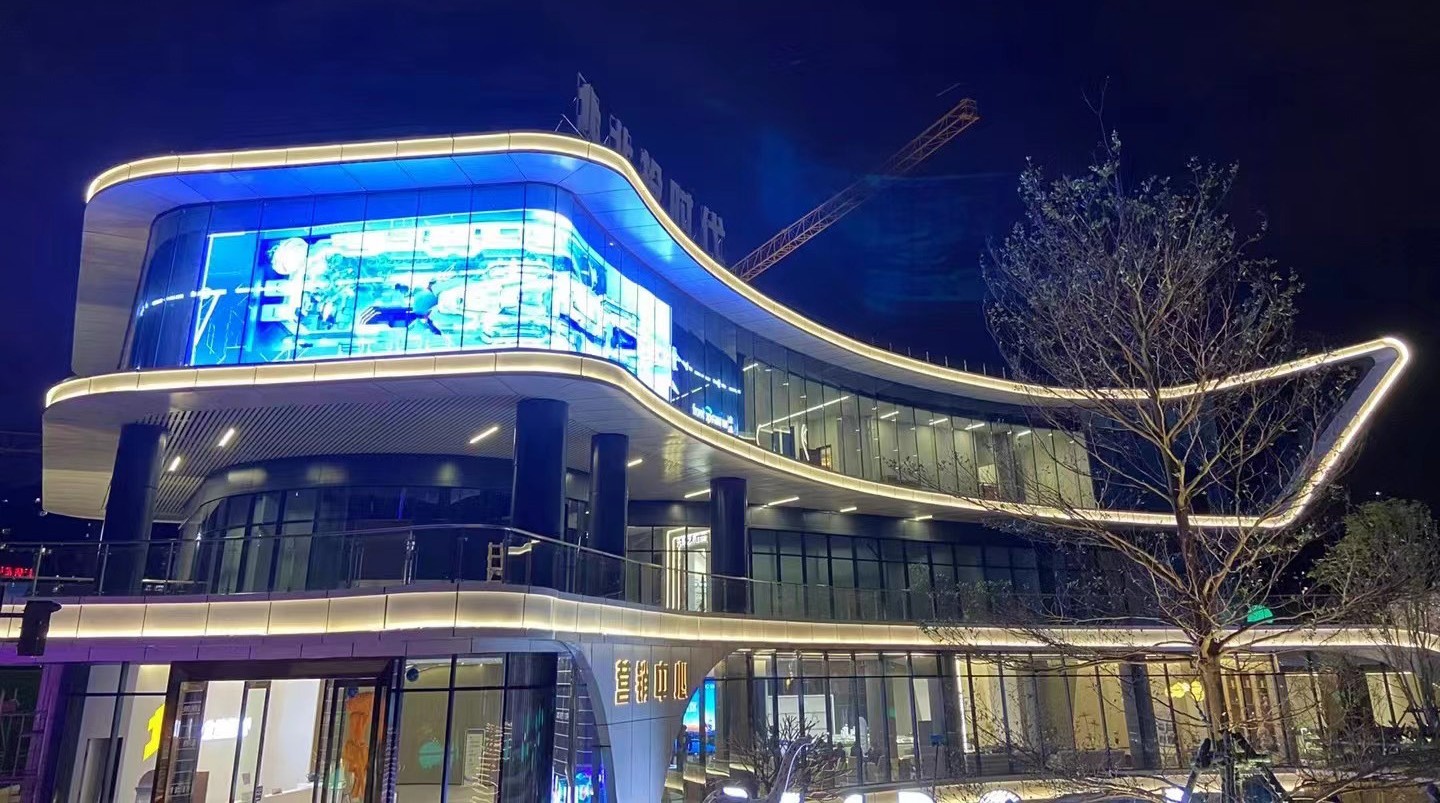

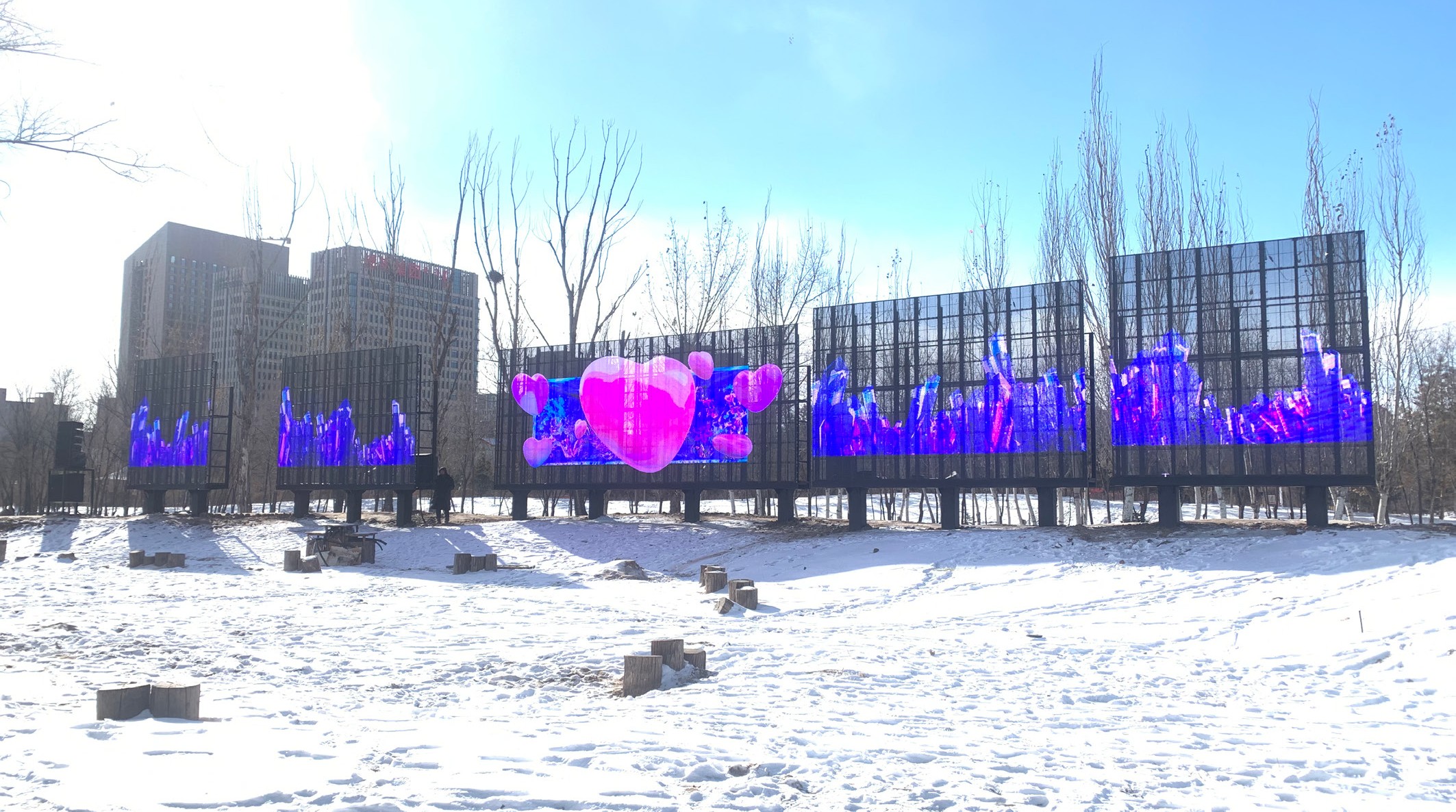

Application cases

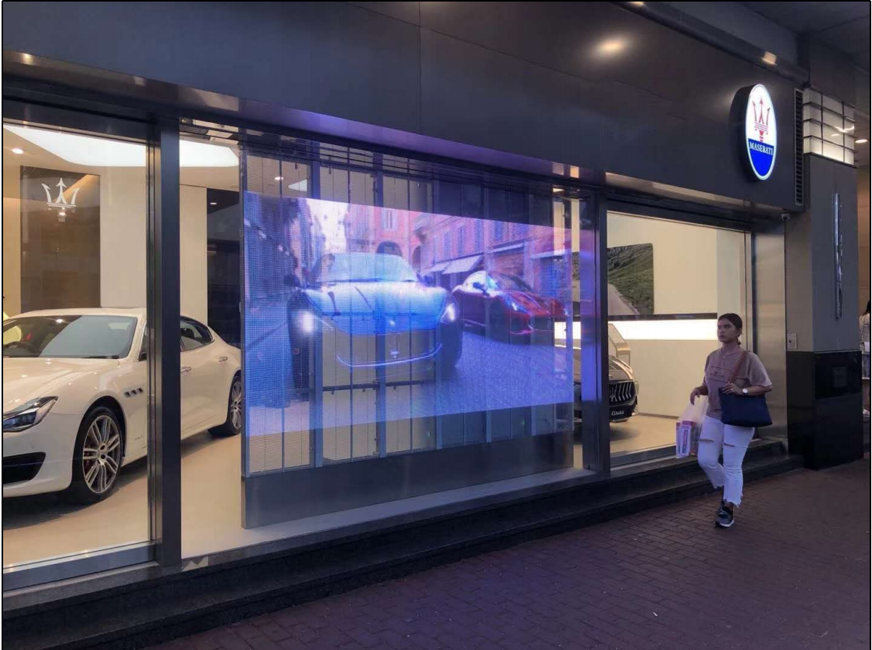

shopping malls, theatres, glass building facade, 4S stores, bars, disco, hotels, etc.
