Fixed LED Display VOF-A Series

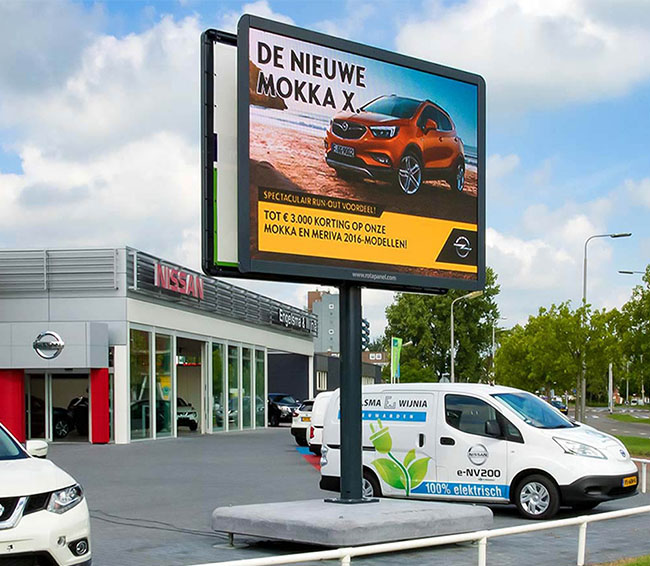

VOF-A Series is indoor and outdoor full color led display with die casing magnesium cabinet. And the cabinet size can be customized as the module size, very flexible for different indoor and outdoor events. It widely used for fixed projects, such as stadium, shopping mall, bank, the station, building advertising, etc.


Feature Details

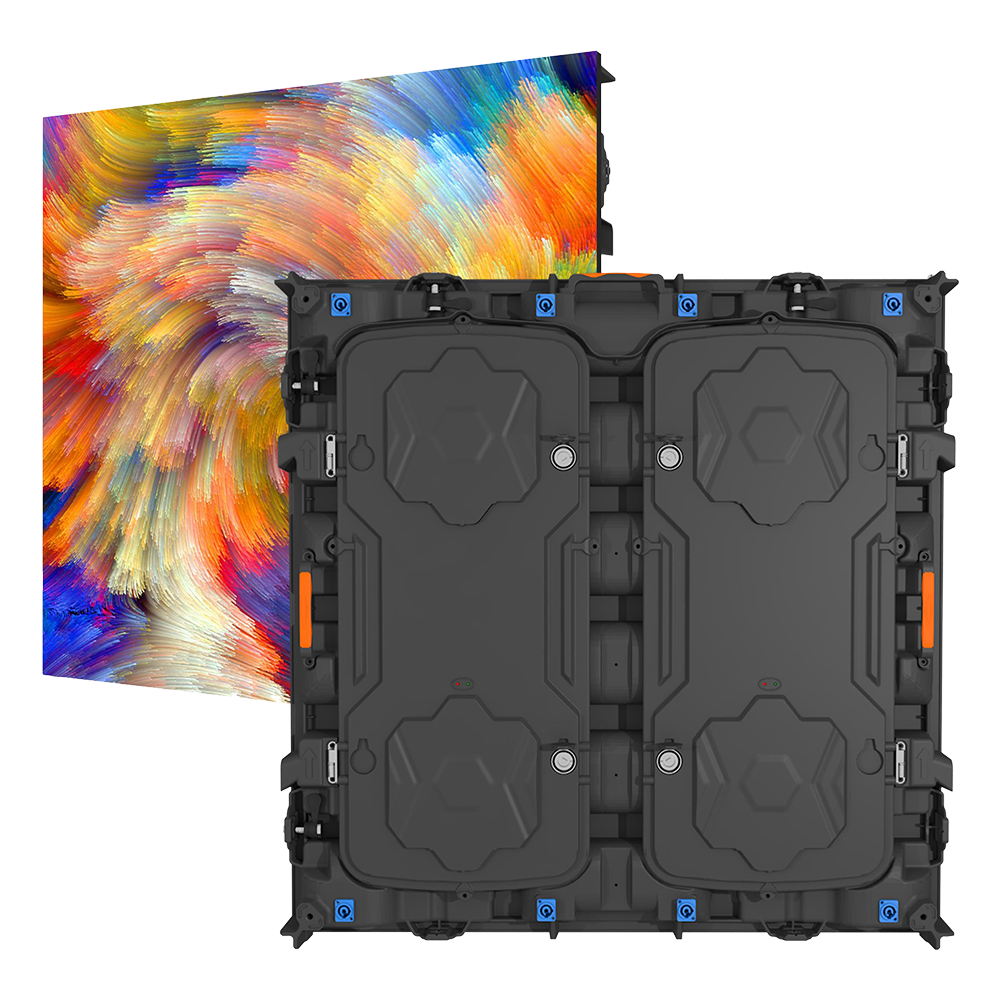

Lighter: the magnesium alloy cabinet is 10kg/m2 lighter than the iron cabinet. It saves transportation cost, reduces the loading weight of buildings and steel structures, and reduces the requirements for bearings.

Multi-function: advertising fixed installation. Smaller cabinet, such as 640x640mm can be used for rental.

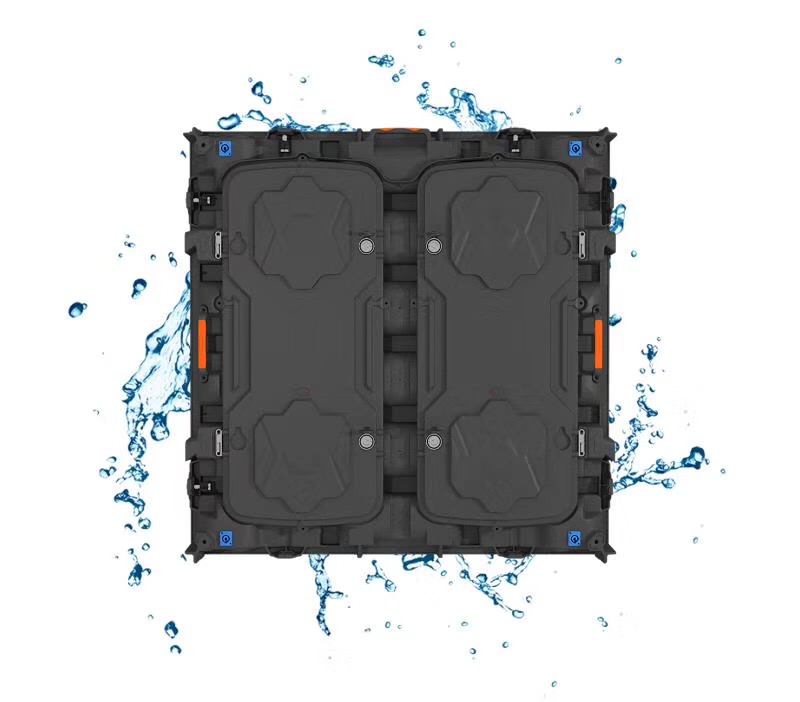

Cost-effective: magnesium alloy cabinet, corrosion-resistant, rust-proof.

Standard module 320x160mm: P2.5 to P10 outdoor/indoor modules are available.

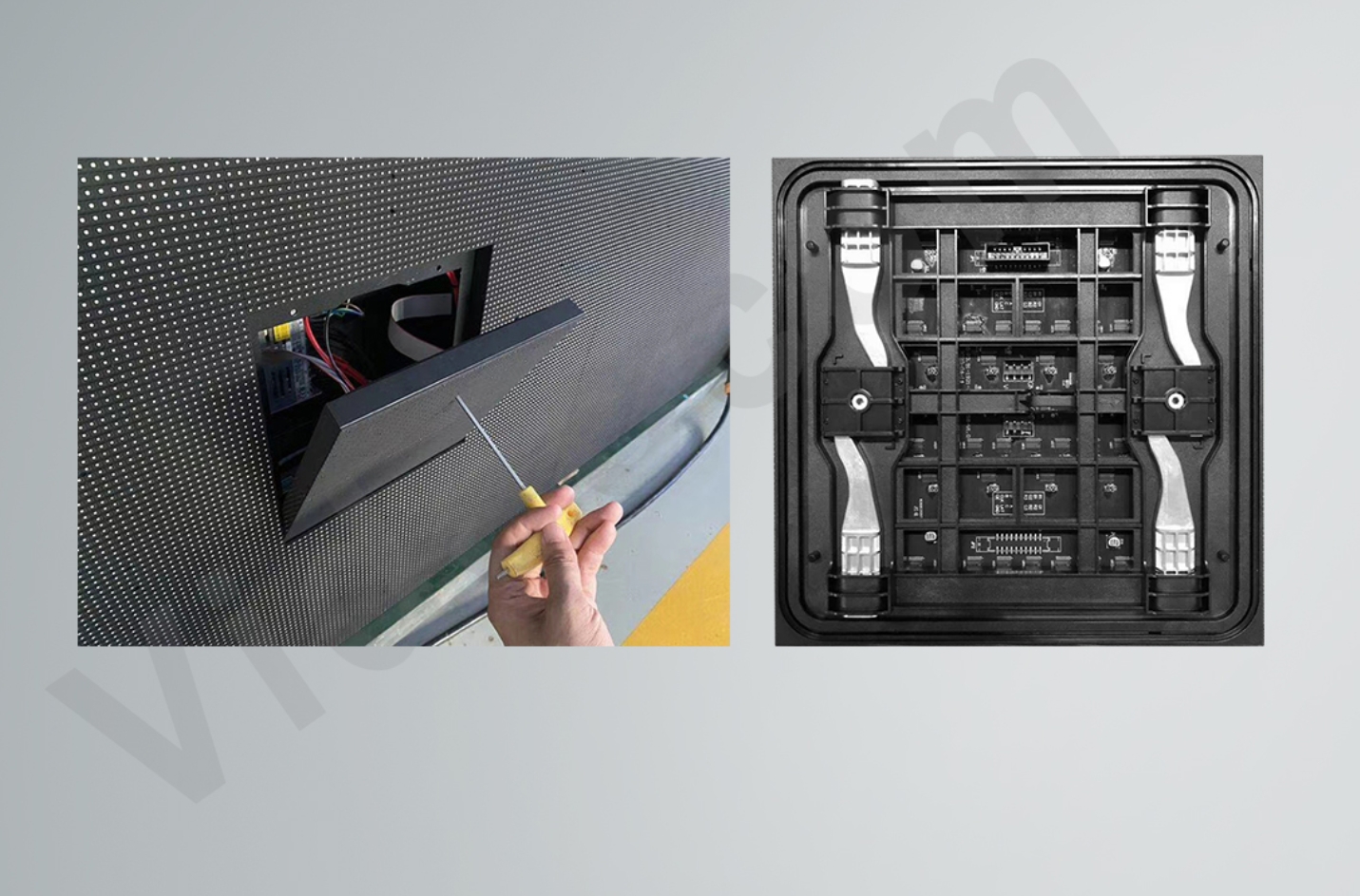

Front & Back Maintenance.

Low light and high grey


Low light and high grey screen is more delicate,use high quality black LED lamp with black mask, the contrast is as high as 3000:1, make the picture clearer and more vivid.
VOF-A Specification
   ModelVOF-A Series
   Pixel Pitch2.5,3,4,5,6,6.67,8,10mm
   Cabinet size960x960x140mm
   Cabinet weight40kg
   Brightness5000-7000nits
   Color temperature6500-8500K
   Refresh frequency1920-3840HZ
   Working temperature-20~50℃
   Storage Temp/Humidity-30 - 60℃/10% - 90%
   Expected LED Lifetime (Max)100,000 Hrs
   IP RatingIP65(outdoor)/IP30(indoor)

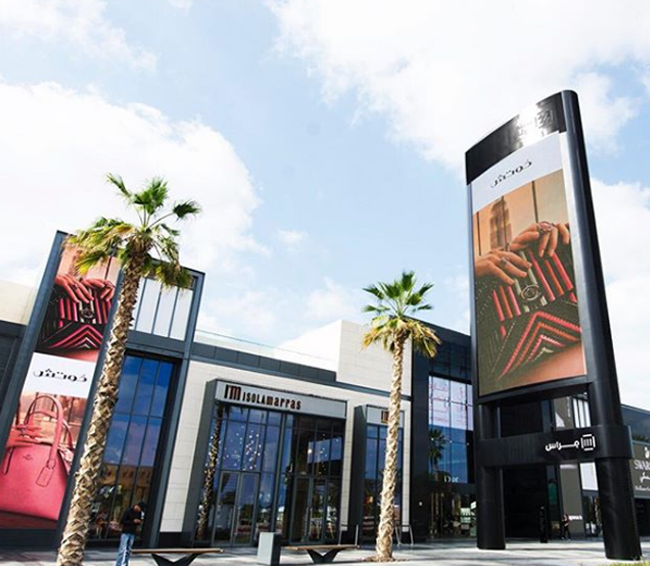

Application cases

VOF-A product series are suitable for retail, food and beverage, outdoor advertising, hotel, transportation, enterprise, hygiene, education, etc.
