Fine Pitch LED Display vFine Series
vFine Series is the special design fine pitch led display which perfectly match with 16:9, with the full front service functionality. It achieves the high quality visual performance at a relatively low cost, and its simple cabinet designed make it lightweight and fast and flexible installation. It is widely used for TV studios, shopping mall, conference, control center, wall mounted projects, etc
High refresh rate, high definition and high gray scale are guaranteed to produce a bright and vivid image without a brightness and color degradation.
Module, power supply, receiving card and cables etc. are maintenanced from the front.
Wide H/V Viewing Angle
The 160° super-wide horizontal and vertical viewing angle brings more large viewing area.

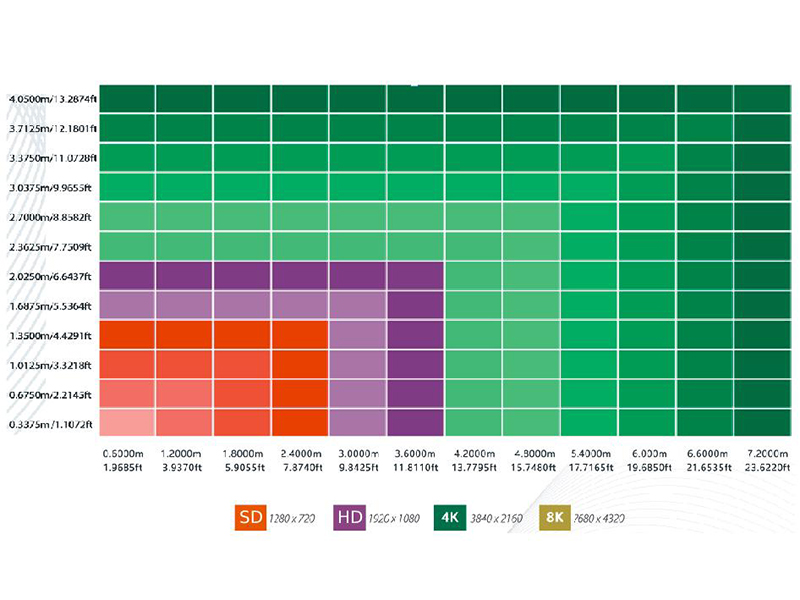

Available pitch 1.25mm/1.56mm in 600x337.5mm cabinet, perfectly match 16:9 for prefessional display.
Multiple Installation Methods Optional
| vFine Specification | ||
|---|---|---|
| Model No. | vFine 1.25 | vFine 1.56 |
| Pixel Pitch | 1.25mm | 1.56 mm |
| Pixel Configuration | SMD1010 | SMD1212 |
| Pixel Density(pixels/m²) | 640,000 | 410,881 |
| Module Size(mm) | 300x168.75 | 300x168.75 |
| Module Resolution(pixels) | 240x135 | 192x108 |
| Cabinet Size(mm) | 600x337.5 | 600x337.5 |
| Cabinet Resolution(pixels) | 480x270 | 384x216 |
| Module Qty per Cabinet(WxH) | 2x2 | 2x2 |
| Cabinet Weight(kg/panel) | 6 | 6 |
| Gray Scale | 16bit | 16 bit |
| Max. Power Consumption | 800W/m²; | |
| Ave. Power Consumption | 300W/m²; | |
| Operating Temp/Humidity | -10℃-50℃/10% - 90% | |
| IP Rating | IP30 | |
| Brightness | 600-800nits | |
| Viewing Angle | 160°/160° | |
| Operating Life | 100,000 hours | |
| Maintenance | Front Service | |

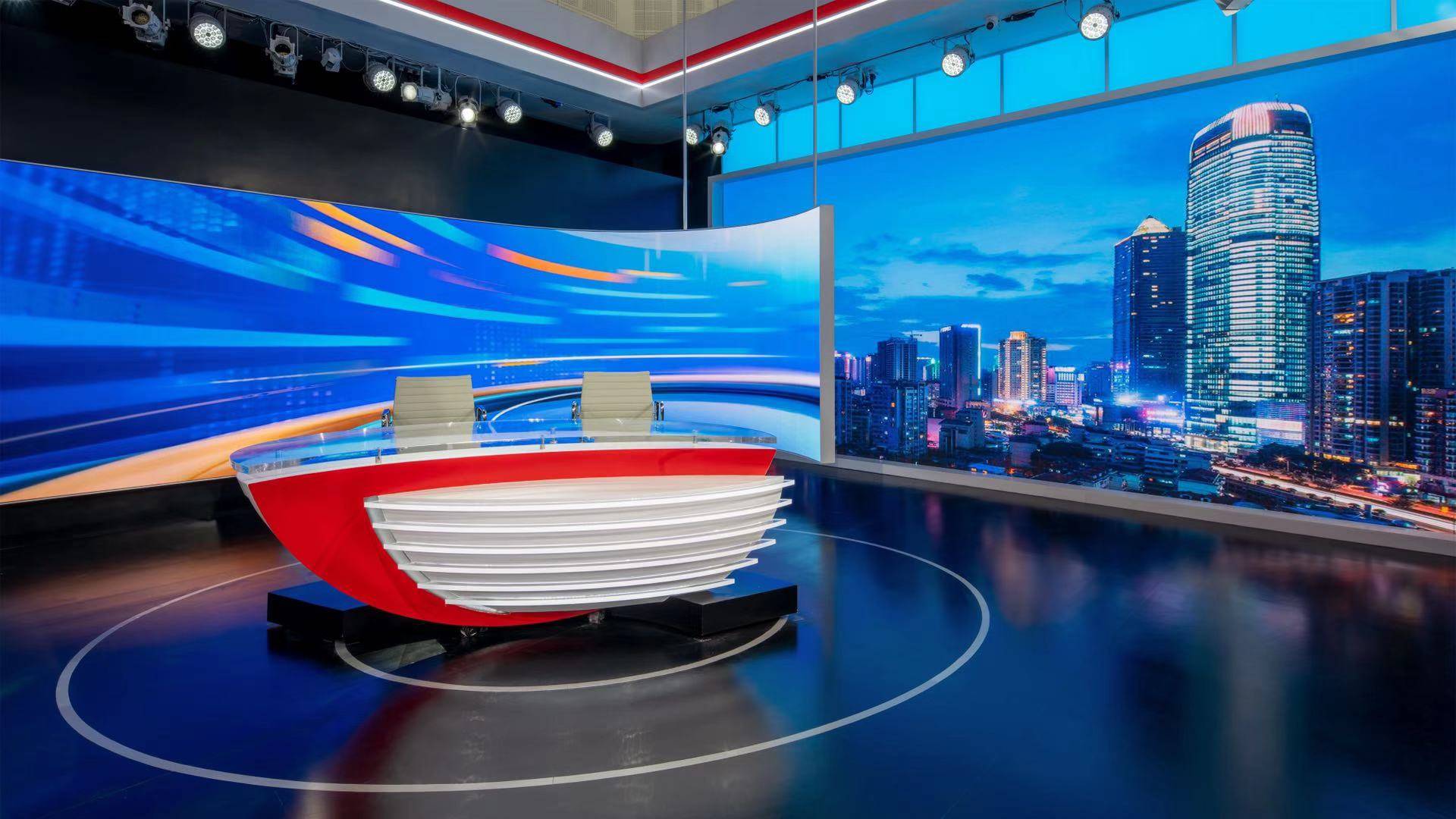

Application cases
VHD Series LED display is widely used in TV studio, theater, church, banquets, vestibules, exhibitions, transportation, shopping mall, command and control room, meeting room, etc.
