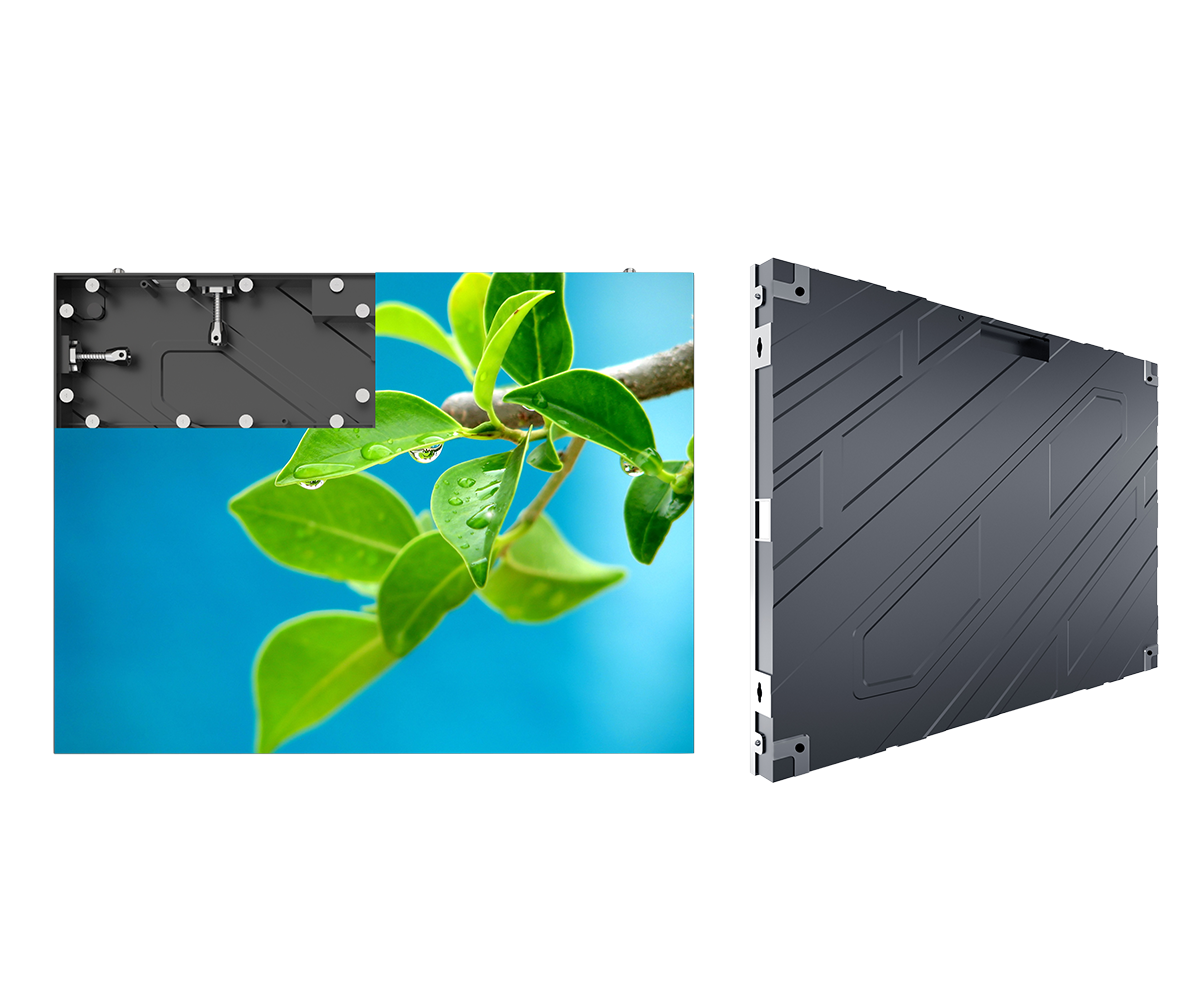

Ultra slim led cabinet with thickness 60mm, super light weight 7kg per panel, compatible with different pixel pitch, such as P1.25, P1.5, P1.667, P1.86, P2, P2.5, P3, P4, P5, etc, stable data transmission with a new connector. Full front service solution, module, power supply, receiving card, connectors, cables, etc all can front maintenance.
Brightness from 0-800 nits is adjustable, with high grayscale and more color depth. Under 100 nits, the colors in our standard led screen will be twice as rich as the colors in competitors’ screens.

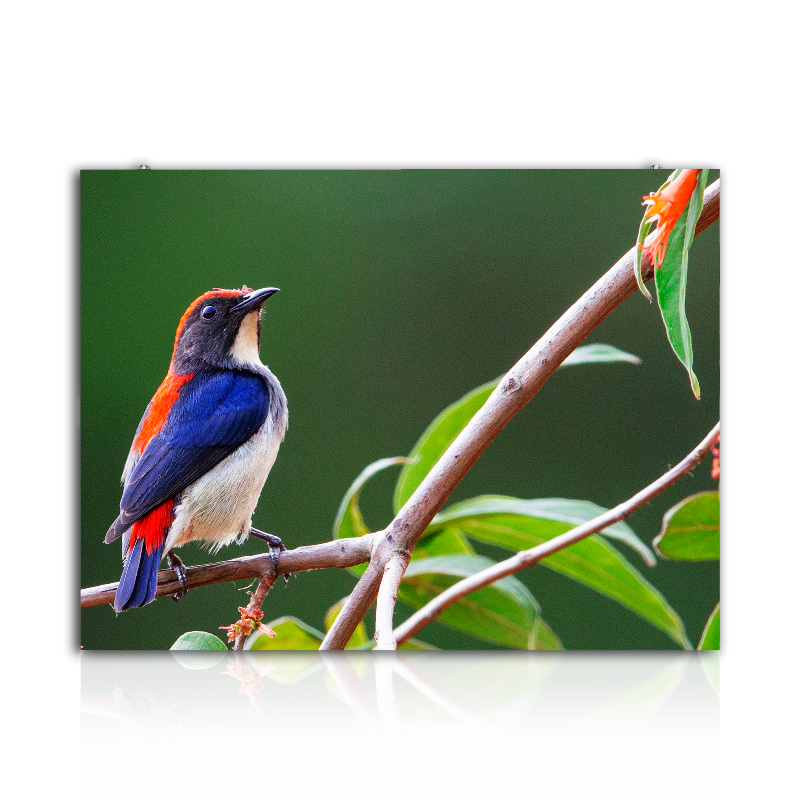

Wide H/V Viewing Angle
The 160° super-wide horizontal and vertical viewing angle brings more large viewing area.
Combining the leading video processing technologies with the refresh rates of 1920/2880/3840/7680Hz, our standard LED screen provides stable broadcast images without the scanning line, and the image edge is sharp and clear when dealing with dynamic images.

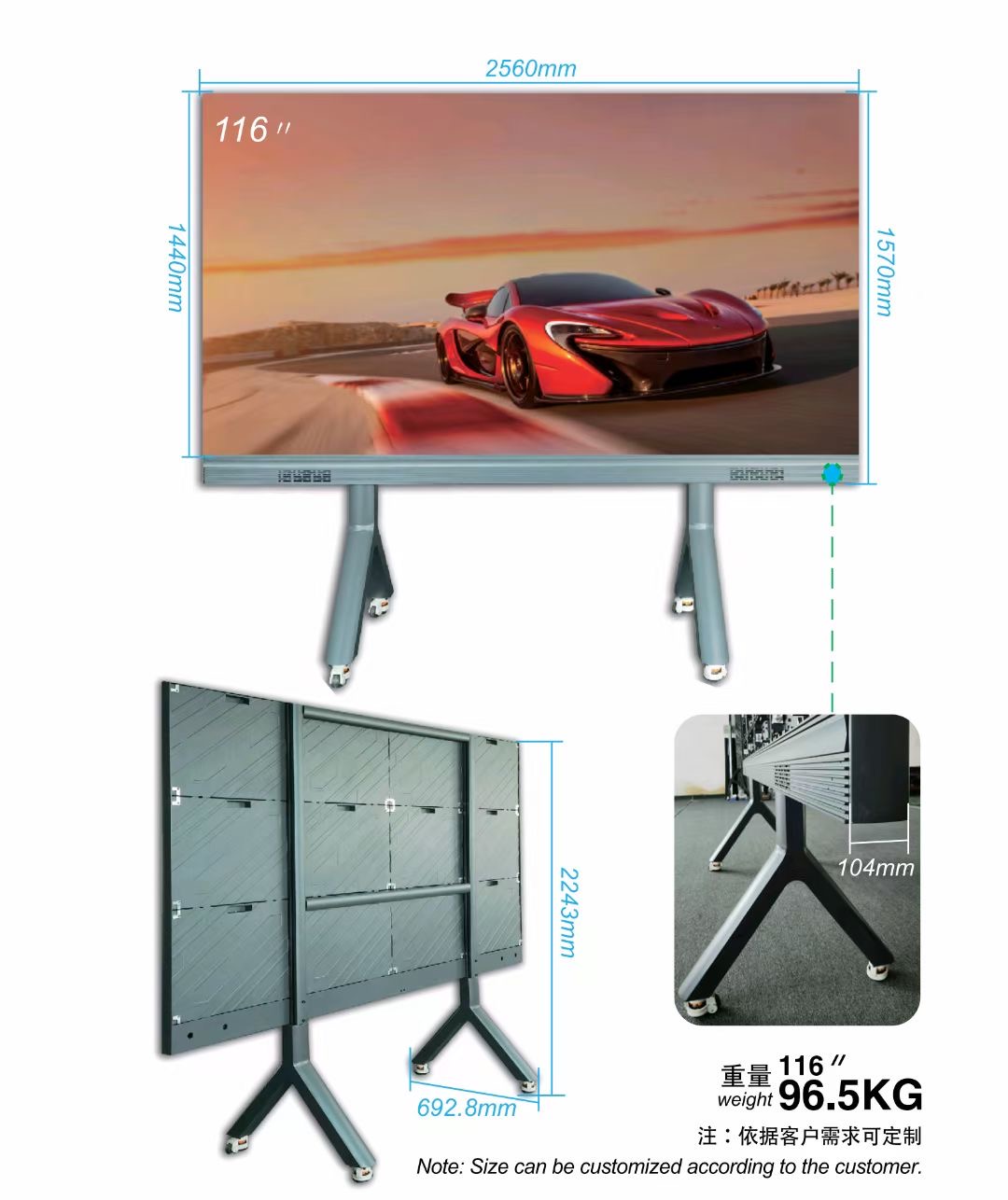

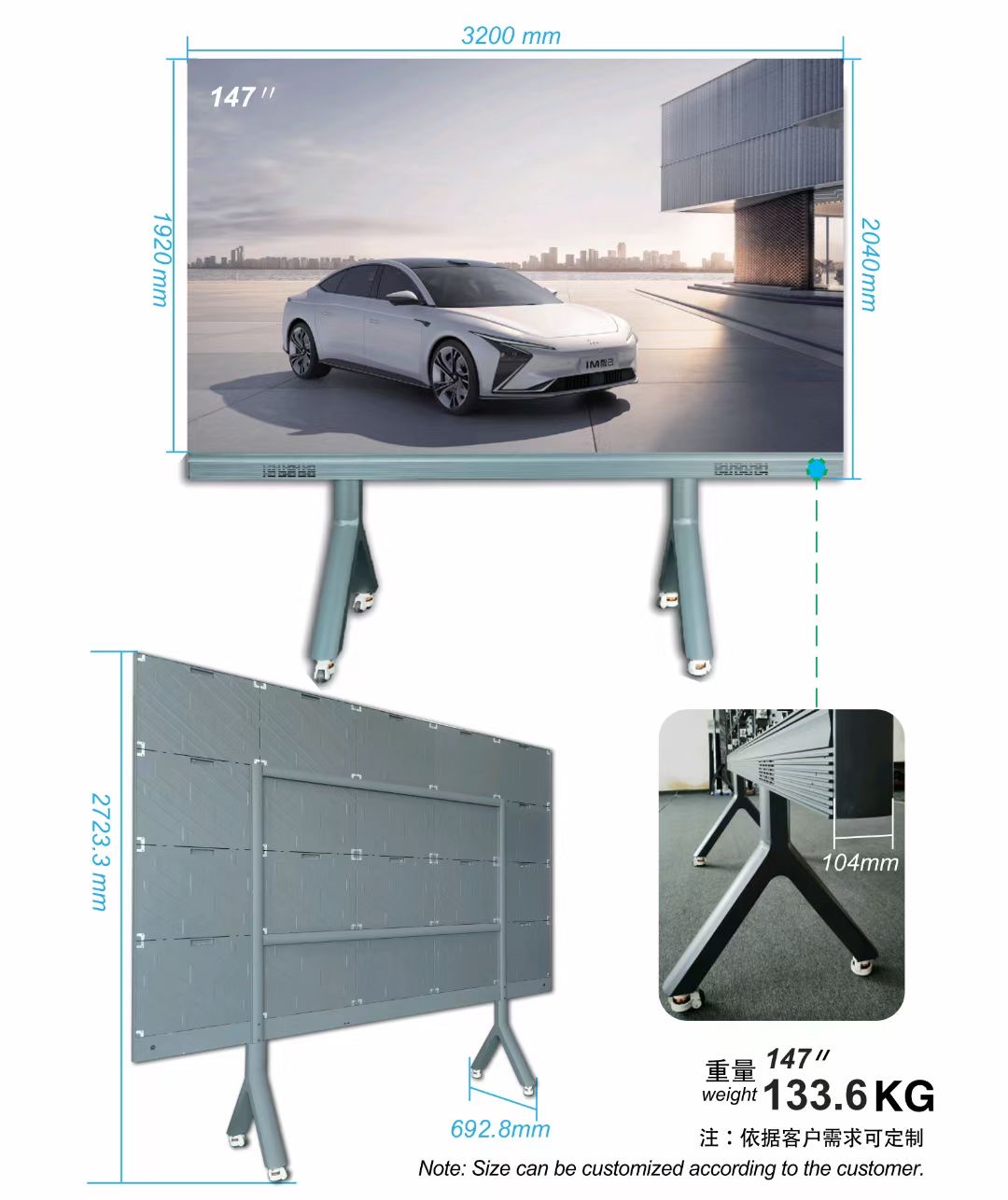

Used as All-in-One Conference LED Display
| VHD Specification | |||||
|---|---|---|---|---|---|
| Model No. | VHD 1.25 | VHD 1.53 | VHD 1.86 | VHD 2 | VHD 2.5 |
| Pixel Pitch | 1.25mm | 1.538 mm | 1.86 mm | 2 mm | 2.5 mm |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Pixel Density(pixels/m²) | 640,000 | 422,500 | 288,369 | 250,000 | 160,000 |
| Module Size(mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Module Resolution(pixels) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
| Cabinet Size(mm) | 640x480x60 | 640x480x60 | 640x480x60 | 640x480x60 | 640x480x60 |
| Cabinet Resolution(pixels) | 512x384 | 416x312 | 344x258 | 320x240 | 256x192 |
| Viewing Distance | ≥2m | ≥2m | ≥2m | ≥2m | ≥3m |
| Cabinet Weight(kg/panel) | 7 | ||||
| Gray Scale | 14bit | ||||
| Max. Power Consumption | 800W/m²; | ||||
| Ave. Power Consumption | 300W/m²; | ||||
| Operating Temp/Humidity | -10℃-50℃/10% - 90% | ||||
| IP Rating | IP30 | ||||
| Brightness | 600-800nits | ||||
| Viewing Angle | 160°/160° | ||||
| Operating Life | 100,000 hours | ||||
| Maintenance | Front Service | ||||

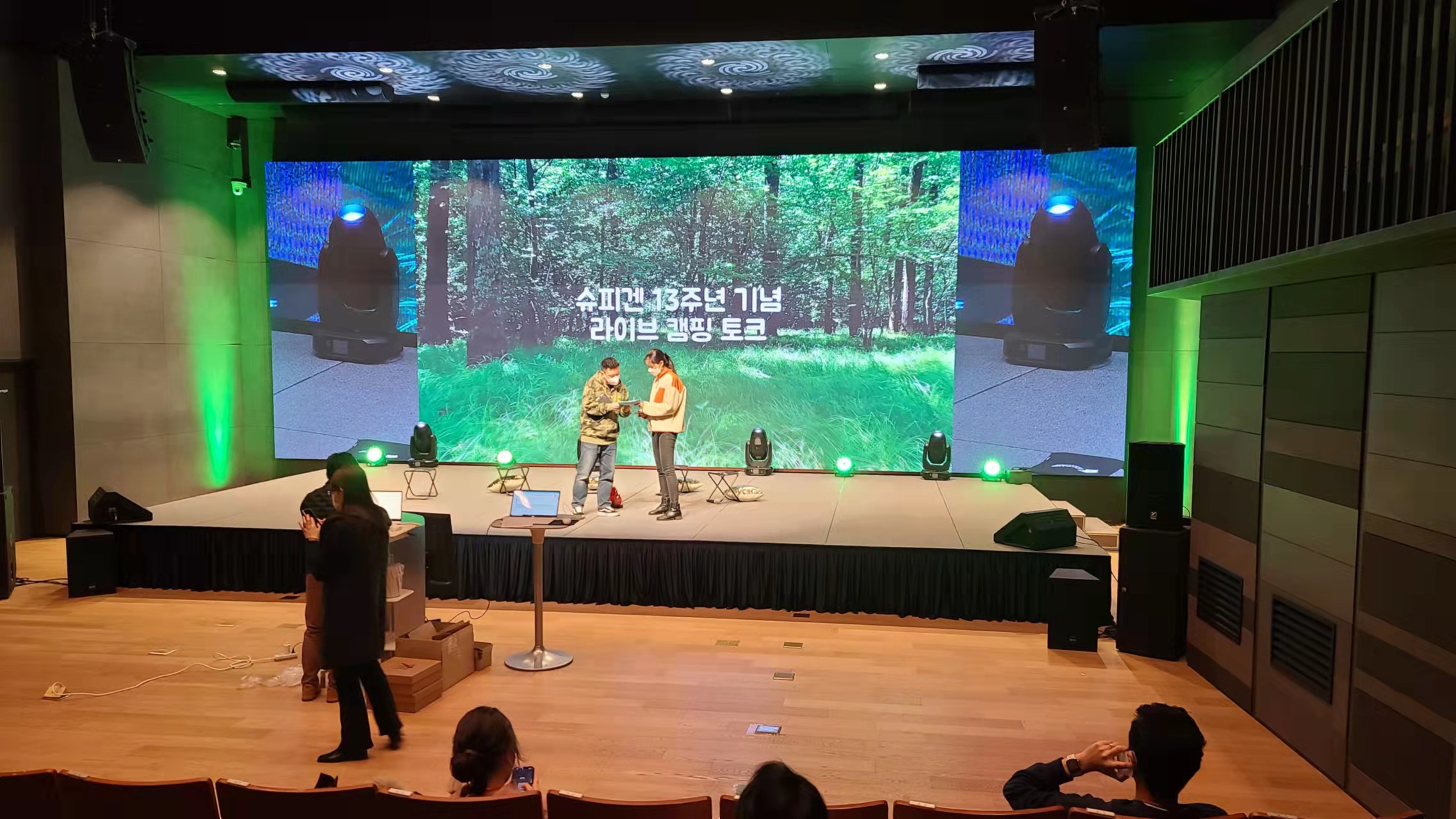

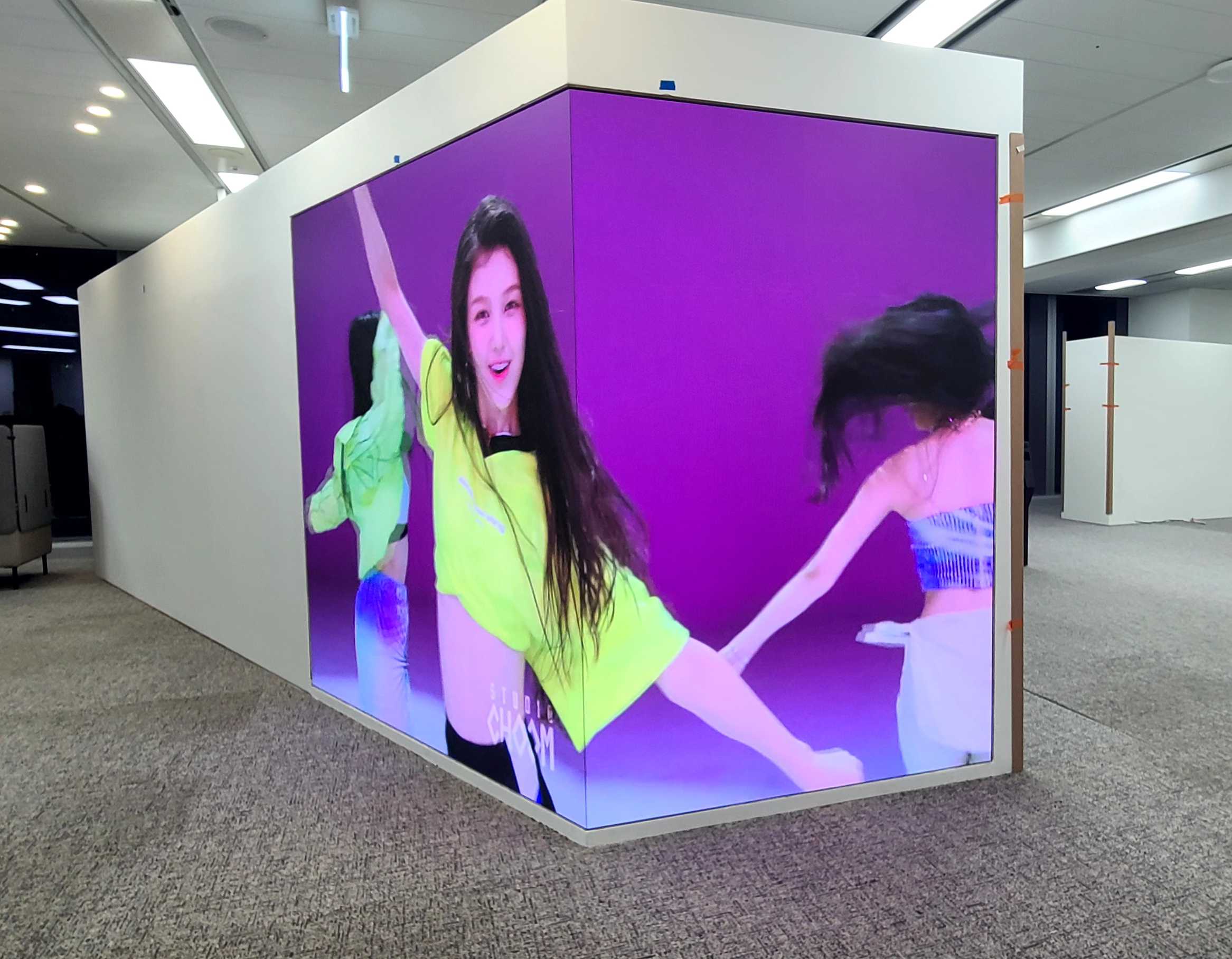

Application cases
VHD Series LED display is widely used in TV studio, theater, church, banquets, vestibules, exhibitions, transportation, shopping mall, command and control room, meeting room, etc.
